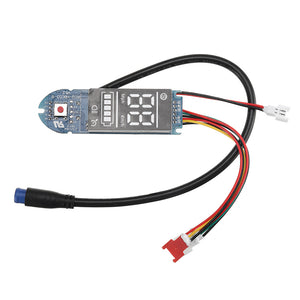

Electric Scooter Meter Dashboard For 36V/42V 350W XT30/XT60 Motor Controller

Warning:

This Dashboard is the replacement parts for ID: 1647907 and ID: 1679291 ,if you don't have ID: 1647907 or ID: 1679291 ,you should not buy it.

OR you can buy ID:1740476

Specification:

Fitment:

Need to be used with controller IDï¼?a href='https://www.banggood.com/36V-350W-12A-XT30-Motor-Controller-For-Scooter-Electric-Bicycle-E-bike-p-1679292.html?cur_warehouse=CN&rmmds=category' target='_blank'>1679292.

Power Display:

1) Voltage 38.2V-42V The first second third fourth fifth lights are always on

2) Voltage 36.6V-38.2V The first second third fourth light is always on

3) Voltage 34.5V-36.6V The first second third lights are always on

4) Voltage 32.8V-34.5V The first second  light is always on

5) Voltage 31.5V-32.8V The first light is always on

6) Voltage 30-31.5V The last grid flashes

7) Turn-off of motor with voltage below 31V

Error Code:

1) 'E1' Motor Hall failure

2) 'E2' MOS

MOS fault or motor phase line short circuit fault

3) 'E3' Brake failure

4) 'E4' Handlebar failure

5) 'E5' Undervoltage protection

6) 'E6' Instrument/control communication failure

7) 'E7' Overvoltage protection

8) 'E8' Controller op amp failure

9) 'E9' Stall protection

Package Included:

1 X Dashboard
