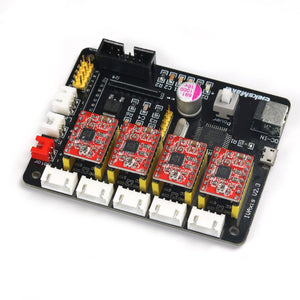

EleksMaker IVAxis 4 Axis Stepper Motor Driver Board Controller Laser board For DIY Laser Engraver
Tax included.
Specification:
Feature:
1. Expansion of functions: Limit, subdivision, stop, hand control, the fan, low light, external relay
2. Fit for DIY desktop laser engraver,dispensing machines printer,plotter,tool CNC.
3. 4-axis linkage, Y-axis dual interface, can drive a stepper motor within 2A 2-phase 4-wire
4. MINI USB interfaces, 12V power supply, delivery lines! Send software! Technical support!
5. Large MOS tube,onboard DC buck module, wire jump ADJ can adjust manually the laser voltage to control the laser power
Instruction:
Please try to use this software to run the device:Click here
About the Activation code,please send your code and serial number to our customer service: cservice@banggood.com. Thank you.
(Every control board has different keys. For example MUKY-SEEA-ASDF-QWRE Serial: 055666)
Note:
1.This control board can only be used with CNCUSB software, need to register firstly,please contact the seller for registration.
2.Please do not connect the power supply above 12V, outside is negative and inside is positive, it is recommended to use 5A or higher power supply!
3.If you feel the motor torque is small, please adjust the potentiometer on the motor driver, don't make it too high, otherwie the motor will be hot!
Package included:
1 x 4 Axis Driver Board
1 x USB Cable
5 x Connector Wire
Wiring instruction:
| Brand | EleksMaker |
| Model | IVAxis |
| Interface | USB |
| Size | 100mm*80mm |
| Power Requirement | higher than12V 2A |
| Support Stepper Motor | Motor within 2A 2-phase 4-wire |
| Input Voltage | 7.5V-12V (the voltage will affect the laser effect)) |
| Power Interface | DC5.5 - 2.1 (Inside is positive electrodes and ouside is negative electrodes) |
Feature:
1. Expansion of functions: Limit, subdivision, stop, hand control, the fan, low light, external relay
2. Fit for DIY desktop laser engraver,dispensing machines printer,plotter,tool CNC.
3. 4-axis linkage, Y-axis dual interface, can drive a stepper motor within 2A 2-phase 4-wire
4. MINI USB interfaces, 12V power supply, delivery lines! Send software! Technical support!
5. Large MOS tube,onboard DC buck module, wire jump ADJ can adjust manually the laser voltage to control the laser power
Instruction:
Please try to use this software to run the device:Click here
About the Activation code,please send your code and serial number to our customer service: cservice@banggood.com. Thank you.
(Every control board has different keys. For example MUKY-SEEA-ASDF-QWRE Serial: 055666)
Note:
1.This control board can only be used with CNCUSB software, need to register firstly,please contact the seller for registration.
2.Please do not connect the power supply above 12V, outside is negative and inside is positive, it is recommended to use 5A or higher power supply!
3.If you feel the motor torque is small, please adjust the potentiometer on the motor driver, don't make it too high, otherwie the motor will be hot!
Package included:
1 x 4 Axis Driver Board
1 x USB Cable
5 x Connector Wire
Wiring instruction:
