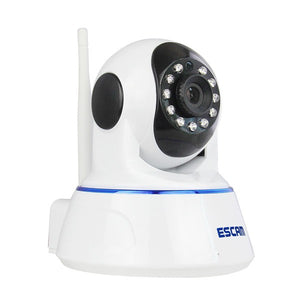

ESCAM QF002 720P CCTV Security Camera Plug&Play WiFi Pan Tilt IR Cut Night Vision Two Way Audio SD Card Camera





Specification :

Model :   ESCAM QF002
Features	System security	Account, password  management
	View by phone	Support HD pic  IOS, Android mobile view (iOS 4.3 / Android OS 2.3 above)
	Local Storage	support up to 32G TF card, 24-hour loop recording.
	Monitor Advantage	Support PC computer monitoring, smartphone multi-pic view.
	UID Technology	UID scan technology applied, easy to operate, and highly confidential.
	Video coding	Multi stream: 720P/25fps+D1/25fps+CIF/25fps
	Bit Rate	CBR/VBR, output bit rate range: 48 - 3072kbps
Video	Compression Format	H.264 baseline profile
	Frame rate	NTSC:30fps/PAL: 25fps (720p)
	Resolution	720P(1280 x 720),D1(704 x 576), CIF(352 x 288)
	Picture Adjustment	Contrast, Brightness, Saturation are adjustable.
	Sensor	1/4 720p Progressive CMOS sensor
	Minimum illumination	Color: 0. 1Lux, B/W: 0.01Lux
	SNR	≥39dB
	IR control	Auto
	Electronic shutter	1/50s(1/60s)-1/100, 000s
	CMOS	support AWB, AGC, BLC
	Lens/viewing angle	3.6mm @ F1.4 / 62.2?
Night Vision	Night vision	Dual IR-CUT Filter auto switch, 11pcs 850nmΦ5mm LED,10m IR distance
Audio	Compression	G.711A
	Input	1 Channel Line in -48dB Microphone
	Output	1 Channel Buit in speaker(8Ω1W)
P/T	P/T	Pan: 355°,Tilt: 120°
Network	network interface	10Base-T/100Base-TX Ethernet interface
	Network Protocol	TCP/IP, HTTP, TCP, UDP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPnP, RTSP, P2P,etc.
	Online visitor	Support 4 online visitors simutaneoursly
	IP address	Dynamic IP and static IP address
	WIFI	WIFI 802.11 b/g/n
	Application environment	Indoor
	Rated Voltage	DC5±0.3V
	Temperature	-10~50 ??/td>
	Power consumption	rated power: 3.5W(IR opening ) / maximum power: 7W(P/T working )
	Package size	195x150x120mm (L x W x H)
	Weight	Gross Weight : 530g
	Accessories	Power adapter, user manual,  mounting bracket, screws.
Alarm	Motion Detection	Support motion detecting



Package includeds :

1 x ESCAM QF002 Camera
1 x Power Adapter (US / EU / UK / AU for optional~)
1 x English User Manual
1 x Mounting bracket and screws



Details pictures :
