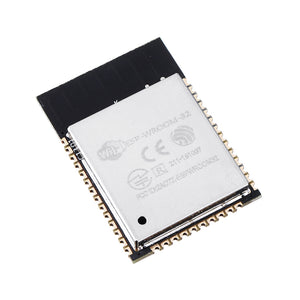

ESP32-WROOM-32 ESP-WROOM-32 ESP-32S ESP-D0WDQ6 Dual Core 32Mbits 4MB SPI Flash UART Mode SMD WIFI Module for Arduino
Tax included.
Overview:
ESP-WROOM-32 is Powered by Espressif's most advanced SoC, the ESP-WROOM-32 features high performance, a wide range of peripherals, Wi-Fi and bluetooth radio, which provide a complete solution tailored to advanced IoT applications.
Features:
- 240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
- Integrated 520 KB SRAM
- Integrated 802.11BGN HT40 Wi-Fi transceiver, baseband, stack and LWIP
- Integrated dual mode bluetooth (classic and BLE)
- 16 MByte flash
- 2.2V to 3.6V operating voltage
- 40°C to +125°C operating temperature
- On-board PCB antenna / IPEX connector for external antenna
- Supports sniffer, station, softAP and Wi-Fi direct modes
- Max data rate of 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 -
- Mbps@11g, and 11 Mbps@11b
- Maximum transmit power of 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n
- Minimum receiver sensitivity of -98 dBm
- 135 Mbps UDP sustained throughput
- 2.5 µA deep sleep current
Package Included:
1 x ESP-WROOM-32 Module
