ESP8266 NodeMCU Video Remote Control + Router + Camera Kit For Chassis Tank Car
Tax included.
Introduction:
This is a video remote control kit for tank car chassis. When getting it, you can develop a video remote control tank car chassis quickly. What's more, the connection is very easy and brief.
The firmware can be seen at the following link: click here
Parameters:
Camera:
Speed: 60frame/s
Material: aluminum alloy
Model: HD720p (1280*720)
Type: UVC
Default: 640*480
Software MAX dynamic pixels: 1600*1200
Software MAX pixel: 4000*3000
Color compress format: YUY2 (default)
Interface: USB2.0,USB1.1
Distance: 30cm-
Static format: BMP/JPEG
Dynamic format: AVI
NodeMcu:
Name: ESP-12E motor shield
Using ESP-12 DEV KIT development shield module
Extend the output ports for ESP-12 DEV KIT: SPI,UART, GPIO, AI and 3.3V power interface
Extend 2-ways motor, then can directly drive2-ways motor
Design a power switch
Voltage for motor: 4.5V-36V
Voltage for ESP control board: 4.5V-9V
Driven chip: L293DD
Disparate the power of ESP board and motor for avoiding the interference. In our experiments, for convenience, a short cut module is used to connect VIN and VM for the power of ESP board and motor.

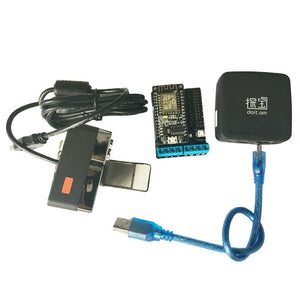

Package included:
1 x Router
1 x Camera
1 x Nodemcu kit
1 x USB cable
,
