FLIP32 F4 OMNIBUS V2 PRO Controller Board Kit Built-In OSD Module Current Sensor
Tax included.
Specifications:
- Color: As the pictures show
- Size: about 36mm x 36mm(1.41''x1.41'')
- Line Length: about 12.7cm(5'')
- SPI Gyro MPU6000
- MicroSD Blackbox
- On-Board OSD (controllered by Betaflight, FC over SPI bus)
- Baro (BMP280) (default is closed,need to open in configuration)
- F4 Processor (F405)
- 5v3a SBEC
- Built-in Current Sensor
- On-Board Video Filter (only can supply 5V to VTX and Camera)
- For FPV w/Baro
Features:
- This is the all new omnibus F4 Pro, based on the design of the popular omnibus F3 pro.
- This main advantage of this board is that is uses the more powerful STM F4 processor for even faster loop times.
- It has all the other things you love from the Omnibus F3 pro including an OSD module, SD card reader, low noise MPU6000 IMU connected via SPI, a current and voltage sensor etc.
- You will need to power this board via an external BEC as the built in LDO is just used as a voltage protector and cannot be used for a long time, otherwise it will overheat.
Using PPM
If you have trouble geting the FC to recognise your PPM receiver, here is what you need to do. You need to enable RX_serial in the GUI and turn UART3 on. Save and reboot the flight controller. Then re-selecting RX_PPM again on the GUY and the FC now communicates with your PPM receiver
Package included:

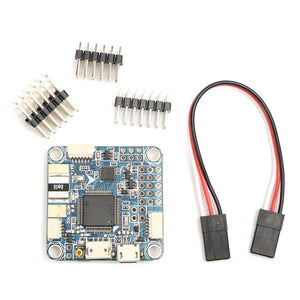

1 x F4 OMNIBUS PRO controller board kit
