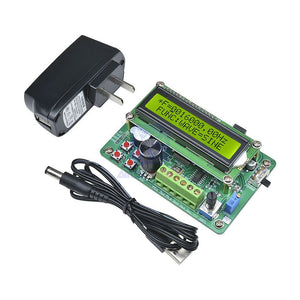

FY1005S 5MHz LCD Digital Display LCD1602 DDS Function Signal Generator Source Module Sine/Triangle/Square Wave TTL Output C with Plug

FY1005S 5MHz LCD Digital Display LCD1602 DDS Function Signal Generator Source Module Sine/Triangle/Square Wave TTL Output C with Plug

  • Save R 1,898.10
Tax included.
SKU:
Signal Output Function:

Output waveforms:Sine wave, Square wave and Triangle wave.
Output amplitude:≥10Vp-p(signal output, no load).
Output impedance:50Ω±10%(signal output).
DC offset:±2.5V(no load).
Display:LCD1602
Frequency range:0.01Hz ~ 5MHz(FY1005).
Resolution:0.01Hz.
Frequency Stability:±1×10-6.
Frequency accuracy:±5×10-6.
Sine wave distortion:≤0.8% (reference frequency is 1kHz).
Trinagle linearity:≥98% (0.01Hz~10kHz).
Rise and fall time of square wave:≤100ns.
Square Wave Duty range:1%~99%.

TTL Output Function:

Frequency range:0.01Hz ~ 5MHz(FY1005).
Amplitude:>3Vp-p.
Fan Out:>20 TTL loads.

COUNTER Function:

Counter Range:0-4294967295.
Frequency Meter Range:1Hz~60MHz.
Input Voltage Range:0.5Vp-p~20Vp-p.
Storage and transferred: 10 set of parameters with storage and recall functions.
Size:9.5cm x 6.5cm x 3cm - 3.74inch x 2.56inch x 1.18inch.

Package Included:

1 x 5MHz DDS Function Signal Generator Module
