FY2010S 10MHz LCD Digital Display DDS Function Signal Generator Source Module Sine/Triangle/Square Wave TTL Output C with Plug

Overview:



FY2000S series is a signal generator based on direct digital synthesis technology(DDS). It is designed with FPGA and powered by DC5V power supply. It can output sinusoidal, square (duty cycle can be adjusted 1%-99%), triangular and sawtooth waveforms. The frequency resolution is 10 mHz, and it also has the function of sinusoidal, square (duty cycle can be adjusted 1%-99%).Dual Differential TTL LevelOutput and counter, 60MHz frequency meter and other functions in one. The FY2000S series has the functions of frequency sweeping, easy to use, high signal stability, adjustable amplitude and DC bias of output signal.Supporting Linear Scanning and Logarithmic ScanningThe scanning frequency range and scanning time can be set arbitrarily.It is an ideal equipment for electronic enthusiasts, laboratories, production lines, teaching and scientific research. It can also be used as a supporting module of industrial equipment.

Features:



??Small size, many functions, easy to carry

??can send commands through the computer to control the work of the instrument

?†High frequency accuracy: frequency accuracy can reach 10-6 orders of magnitude

?†High frequency resolution: full range frequency resolution 10mHz

?†No range limitation: full range frequency is not divided, direct digital setting

?†High waveform accuracy: The output waveform is synthesized by the calculated value of the function, the waveform accuracy is high, and the distortion is small.

?†Multiple waveforms: sine, square wave, triangle wave, sawtooth wave, dual TTL level differential output

??Scanning feature: With frequency scanning function, the scan start and end points can be set arbitrarily

?†Storage feature: It can store 20 sets of user-set instrument status parameters, which can be recalled at any time.

?†Operation mode: all button operation, LCD1602 LCD English display, direct digital setting or knob continuous adjustment

?†High reliability: large-scale integrated circuit, surface mount technology, high reliability and long service life

?†Frequency measurement: With 60MHz frequency meter function, frequency measurement of internal/external signals

??Buzzer sound function: When the instrument is operated, the buzzer will sound an operation sound, and the user can turn it on or off.

product specification	FY2002S	FY2005S	FY2008S	FY2010S
Frequency range of sinusoidal wave	0Hz - 2MHz	0Hz - 5MHz	0Hz - 8MHz	0Hz - 10MHz
Frequency range of square wave	0Hz - 2MHz	0Hz - 2MHz	0Hz - 2MHz	0Hz - 2MHz
Frequency range of triangular wave	0Hz - 2MHz	0Hz - 2MHz	0Hz - 2MHz	0Hz - 2MHz
Frequency range of other waveforms	0Hz - 2MHz	0Hz - 2MHz	0Hz - 2MHz	0Hz - 2MHz

Signal output parameters
Output channel	One main waveform output and two TTLDifferenceLevel output
Output waveform	Sinusoidal wave, square wave (duty cycle adjustable), triangular wave, ascending sawtooth wave,Reduced saw tooth wave
Output amplitude	More than 10Vp-p(no load)
Output impedance	50 ohm + 10%
DC offset	+ 3V
frequency resolution	0.01Hz (10mHz)
Frequency accuracy	+ 5 x 10-6
Frequency stability	+ 2 x 10-6/3 hours
Sinusoidal distortion	Less than 0.8%(Reference frequency)1KHz)
Triangular wave linearity	More than 98%(0.01Hz~10kHz)
Time of rise and fall of square wave	≤50ns
Scope of square wave duty cycle	1%~99%

TTLoutput
Range	>3Vp-p
Fan-out	>20 TTLload
TTL levelTime of rise and fall	≤20ns

Frequency counter function
Counting range	0-4294967295
Frequency measurement range	1Hz~60MHz
Input amplitude	2Vp-p~20Vp-p

Scanning function
Scanning mode	Linear and Logarithmic Scanning
Frequency setting range	Arbitrary setting of starting and ending points (starting frequency should be less than terminating frequency)
Frequency Scanning Range	M1Preset frequency~M2Preset frequency
Scanning rate	1s~99sStep by step

Other characteristics
Display mode	LCD1602LCD English Display
Storage and Input Functions	M0-M19(M0:Default Input)
Tip function of buzzer	Open or close through program settings
Power supply condition	DC5V 1A, Random Accessory AC220V to DC5V Power Supply Adapter
manufacturing process	surfaceFace mounting technology, large scale integrated circuits,High reliability and long service life
Operational characteristics	All key operation, knob continuous adjustment
environment condition	Temperature:0~40??br /> Humidity:< 80%
size	95Mm (long*65Mm(wide*30mm(high)
weight	230ga

Package Included:

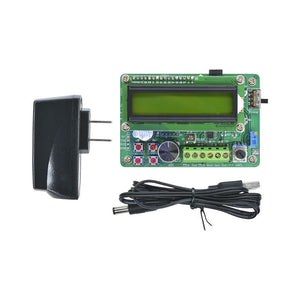

1 x FY2010S 10MHz LCD Digital Display DDS Function Signal Generator
1 x AC Power Adapter
