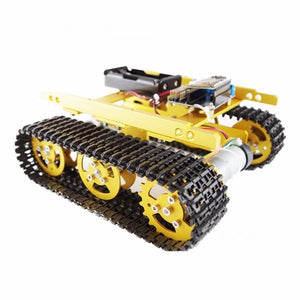

Geekcreit T100 NodeMCU Aluminum Alloy Tank Track Caterpillar Chassis Smart Robot DIY Kit

R 3,141.79
Unit price per
Save R 3,141.79

Tax included.

Description:

This tank/car chassis is assembled by ESP8266 WiFi module, Based on which, doit company has already designed and developed the mobile phone App with Android and iOS version. By the Apps, the tank/car chassis can finish some basic functions, such as, forward, left & right, back, and return. Doit company provides the richful documents, including the source code, which can let many developers, lovers, and students to DIY the wanted functions. More details, please see the "download" menu.

Some useful download links:

Motor DataSheet for Tank/Car Chassis: click here

Chassis Installation: click here

Software manumal: click here

Android App: click here

iOS App: click here

FirmWare: click here

Motor shield: click here

NodeMCU: click here

Specifications:

Name: T100 Intelligent track car/tank chassis
Material: aluminum alloy
Wheel: metal
Track: plastic
Product size: about 200 x 190 x 80mm (length x width x height)
Weight: 740g
Color: golden yellow
Add the 25mm and 37mm motor frame, can change the 4WD smart car

Motor Parameters:

Name:25mm gear motor

Output speed: 150±10%rpm

No_load current: 200mA (Max)

Stall current: 4500mA(max)

Stall torque: 9.5kgNaN

Rated speed: 100±10%rpm

Rated torque: 3000gNaN

Rated current: 1200mA (Max)

Noise : 56dB

Working voltage: 9V

Outside Shaft Length: 14.5mm

Shaft End Play: 0.05-0.50mm

Screw Size: M3.0

Dia. Of Shaft phi 4mm, D3.5

Encoder: 2pulses/circle

Working voltage for sensor: 5V

Shipping List:

Chassis: 1 pcs

Driving wheels: 2 pcs

Bearing wheels: 4 pcs

Track:2 pcs (can be changed the length)

DC motor: 2 pcs

LED light: 2 pcs

NodeMCU WiFi development kit: 1set

18650 battery box: 1pcs ( Batteries not included )

Screws: several

Screw tools: 3 pcs
