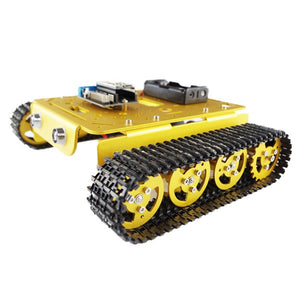

Geekcreit T200 NodeMCU Aluminum Alloy Tank Track Caterpillar Chassis Smart Robot DIY Kit
Tax included.
Descriptions:
A novel design has already come for the tank chassis, with beautiful shape, and full metal aluminum alloy structure.
In this tank chassis, a space for the 9g servo is left for the ultrasonic sensor, and a space for the MG995 servo is also left to rotate the mechanical manipulator. UNO R3, and NodeMCU development boards are also designed to install. The metal panel can be used to install the wheeled car install the 25mm and/or 37mm motor frames. Interesting, a LED light is installed to brighten the dark in the night.
The tank chassis can be smoothly turn left, right, circle, forward and backward with the help of the motor.
The chassis tank car kit is assembled by ESP8266 WiFi module.
It has been already designed and developed the mobile phone App for Android and iOS version. By the Apps, the tank/car chassis can finish some basic functions, such as, forward, left & right, back, and return. And provides the rich documents, including the source code, which can let many developers, lovers, and students to DIY the wanted functions.
Some useful download links:
Specification:
Name: T200 Intelligent track car/tank chassis
Material: aluminum alloy
Wheel: metal
Track: plastic
Product size: about 300 x 220 x 55mm (length x width x height)
Weight: 1200g
Color: golden yellow
Motor Parameters:
Motor Parameters:
- Name:25mm gear motor
- Output speed: 150±10%rpm
- No_load current: 200mA (Max)
- Stall current: 4500mA(max)
- Stall torque: 9.5kgNaN
- Rated speed: 100±10%rpm
- Rated torque: 3000gNaN
- Rated current: 1200mA (Max)
- Noise : 56dB
- Working voltage: 9V
- Outside Shaft Length: 14.5mm
- Shaft End Play: 0.05-0.50mm
- Screw Size: M3.0
- Dia. Of Shaft phi 4mm, D3.5
- Encoder: 2pulses/circle
- Working voltage for sensor: 5V
Shipping List:
Chassis:1 pcs
Driving wheels: 2 pcs
Bearing wheels: 6 pcs
Track:2 pcs (can be changed the length)
DC motor: 2 pcs
LED light: 2 pcs
NodeMCU development kit: 1 set
18650 battery box: 1pcs( Batteries not included )
Screws:several
Screw tools: 3 pcs
,
,
,
