GM63D USB/RS232 1D/2D Barcode Scanner Reader Module with Short or Long Connection Cable
Tax included.
Features:
1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.
2. High-efficiency recognization and high upload speed for improving your working efficiency.
3. With buzzer for reminding you that the scanning successfully or not.
4. Compatible with USB and UART interface.
5. Over 180 configurable options.
6. Macro support replace a string in the bar code with another.
7. Programmable preamble postamble and termination strings.
8 .Superior reading performance utilizing advanced decoding algorithms.
Specifications:
| Model | GM63D |
| Type | Barcode Scanner |
| Decoding Ability | Codebar/ Code 11/ Code 39/Code 93/ UPC /EAN/Code 128/EAN128/Interleaved 2 of 5/ Matrix 2 of 5/ MSI Code/MSI Code/ Industrial 2 of 5/ GS1 Databar/QR code/ Data Matrix/PDF417 |
| Interface | USB2.0 UART |
| Resolution | 6mil |
| Operating Voltage | 5V |
| Operating Current | 90mA |
| Weight | 15g |
| Size | 51*28.5*1.6mm |
| Scan Angle | 0-360°, Pitch:±45°or greater, Yaw:±45°or greater |
| Scanning angle Inclination angle | 46°, Elevation angle 36° |
| Reading Distance | 25 - 250mm |
| Operating Temperature | -30 degrees to 70 degrees |
| Storage Temperature | -40 degrees to 65 degrees |
| Temperature Humidity | 5% to 95% Relative humidity, Non-condensing |
| Light Levels | 0-85000LUX |
Package Included:

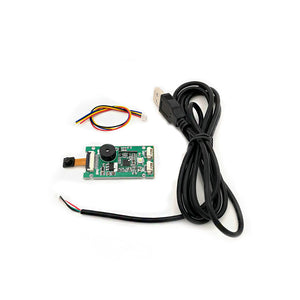

1 x GM63D USB/RS232 1D/2D Barcode Scanner Reader Module
1 x Short or Long Connection Cable(optional)
1 x USB Cable
| Model | GM61 | GM63D | GM73 | GM65-S | GM65 | GM66 | GM67 | GM68 | GM72 |
| Interface | UART | USB/UART | USB/UART | USB/UART | USB/UART | USB/UART | USB/UART | USB/UART | USB/UART |
| Resolution | 8 mil | 6 mil | 6 mil | 0.1mm(4 mil ) | 0.1mm(4 mil ) | 0.1mm(4 mil ) | 5 mil | 6 mil | 6 mil |
| Operating Voltage | 3.3V | 5V | 5V | 3V | 5V | 5V | 5V | 3.3V | 5V |
| Operating Current | 58mA | 90mA | 90mA | 120mA | 120mA | 120mA | 180mA | 100mA | 100mA |
| Weight | 3g | 15g | 15g | 7g | 13g | 31g | 13g | 6g | 27g |
| Size | diameter 21mm | 51*28.5*1.6mm | diameter 46mm | 21.4*13.5*11.8mm | 46.8*27.5mm | 62.3*42.5*24.5mm | 46.5*27.5*14mm | 30*24*7mm | 65*61*28mm |
| Decoding Ability | QR Code,Code 128,EAN 128,Code 39,Code 93,Code 11,UPC,EAN,Codebar,Interleaved 2of 5,Matrix 2of 5,MSI Code,Industrial 2of 5,GS1 Databar | Codebar/ Code 11/ Code 39/Code 93/ UPC /EAN/Code 128/EAN128/Interleaved 2 of 5/ Matrix 2 of 5/ MSI Code/MSI Code/ Industrial 2 of 5/ GS1 Databar/QR code/ Data Matrix/PDF417 | Codebar/ Code 11/ Code 39/Code 93/ UPC /EAN/Code 128/EAN128/Interleaved 2 of 5/ Matrix 2 of 5/ MSI Code/MSI Code/ Industrial 2 of 5/ GS1 Databar/QR code/ Data Matrix/PDF417 | 1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect |
1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect |
1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect |
1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect |
1D:EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code etc 2D:PDF417,QR Code ,Data Matrix , Maxicode, Aztec etc |
1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix , Maxicode, Aztec |
