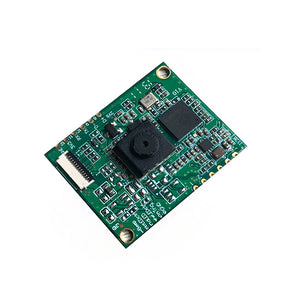

GM68 1D 2D Bar Code Qr Code Scanner Reader Module Barcode USB2.0/UART
Tax included.
Specifications:
Model |
GM68 |
Type |
Barcode Scanner |
Decoding Ability |
1D:EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code etc
2D:PDF417,QR Code ,Data Matrix , Maxicode, Aztec etc
|
Interface |
USB2.0 / UART |
Resolution |
6 mil |
Operating Voltage |
3.3V |
Operating Current |
100mA |
Weight |
6g |
Size |
30*24*7mm |
Scan Angle |
Roll:0-360°, Pitch:±55°or greater, Yaw:±55°or greater |
Scanning angle Inclination angle |
60°, Elevation angle 46° |
Print Contrast |
25% minimum reflective difference |
Reading Distance |
30 - 150mm |
Operating Temperature |
-20 degrees to 55 degrees |
Storage Temperature |
-40 degrees to 65 degrees |
Temperature Humidity |
5% to 95% Relative humidity, Non-condensing |
Light Levels |
0-10000LUX |
Package Included:
1 x GM68 1D 2D Bar Code Qr Code Scanner Reader Module
| Model | GM61 | GM63D | GM73 | GM65-S | GM65 | GM66 | GM67 | GM68 | GM72 |
| Interface | UART | USB/UART | USB/UART | USB/UART | USB/UART | USB/UART | USB/UART | USB/UART | USB/UART |
| Resolution | 8 mil | 6 mil | 6 mil | 0.1mm(4 mil ) | 0.1mm(4 mil ) | 0.1mm(4 mil ) | 5 mil | 6 mil | 6 mil |
| Operating Voltage | 3.3V | 5V | 5V | 3V | 5V | 5V | 5V | 3.3V | 5V |
| Operating Current | 58mA | 90mA | 90mA | 120mA | 120mA | 120mA | 180mA | 100mA | 100mA |
| Weight | 3g | 15g | 15g | 7g | 13g | 31g | 13g | 6g | 27g |
| Size | diameter 21mm | 51*28.5*1.6mm | diameter 46mm | 21.4*13.5*11.8mm | 46.8*27.5mm | 62.3*42.5*24.5mm | 46.5*27.5*14mm | 30*24*7mm | 65*61*28mm |
| Decoding Ability | QR Code,Code 128,EAN 128,Code 39,Code 93,Code 11,UPC,EAN,Codebar,Interleaved 2of 5,Matrix 2of 5,MSI Code,Industrial 2of 5,GS1 Databar | Codebar/ Code 11/ Code 39/Code 93/ UPC /EAN/Code 128/EAN128/Interleaved 2 of 5/ Matrix 2 of 5/ MSI Code/MSI Code/ Industrial 2 of 5/ GS1 Databar/QR code/ Data Matrix/PDF417 | Codebar/ Code 11/ Code 39/Code 93/ UPC /EAN/Code 128/EAN128/Interleaved 2 of 5/ Matrix 2 of 5/ MSI Code/MSI Code/ Industrial 2 of 5/ GS1 Databar/QR code/ Data Matrix/PDF417 | 1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect |
1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect |
1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect |
1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix ect |
1D:EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code etc 2D:PDF417,QR Code ,Data Matrix , Maxicode, Aztec etc |
1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect 2D: PDF417,QR Code ,Data Matrix , Maxicode, Aztec |
