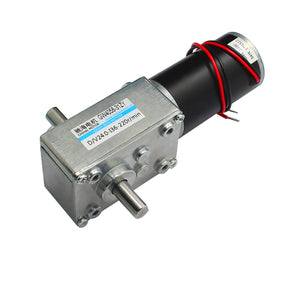

GW4058-31ZY Double Shaft DC Motor 12V/24V 110rpm/220rpm Reduction Motor Worm Gear Gear Box Motor
Tax included.
Description:
The motor is a micro turbine and worm speed reducing DC motor, which can change the direction of the motor and the rotation direction of the motor.
Specification:
The motor is a micro turbine and worm speed reducing DC motor, which can change the direction of the motor and the rotation direction of the motor.
Specification:
| Voltage | 24.0V | 12.0V |
| No Load Speed | 220RPM | 110RPM |
| No Load Current | 250mA | 130mA |
| Gear Reduction ratio 1:36 | ||
| Max. Eff. Output | 9.2W | 2.4W |
| Max. Eff. Torque | 5.0 Kg.cm | 2.5 Kg.cm |
| Max. Eff. Current | 1.1A | 0.55A |
| Max. Eff. Speed | 175RPM | 85RPM |
| Power failure self-locking | ||
| Max. Pow. Output | 15W | 3.7W |
| Max. Pow. Torque | 13 Kg.cm | 6.5 Kg.cm |
| Max. Pow. Current | 2.4A | 1.2A |
| Max. Pow. Speed | 100RPM | 50RPM |
| Stall Torque | ≥ 23 Kg.cm | ≥ 11 Kg.cm |
| Stall Current | 4.4A | 2.2A |
Features:
Worm reducer motor with self lock, that is, in the absence of electric motor, the output shaft is not moving, that is, self locking, self locking force is 1.2 times the rated torque.
Gearbox output shaft and the motor shaft is vertical layout, the entire output shaft of the motor is relatively general deceleration motor ultra short, widely adapted to some of the installation dimensions of the requirements of the occasion.
Package includedd :
1 x GW4058-31ZY Motor
