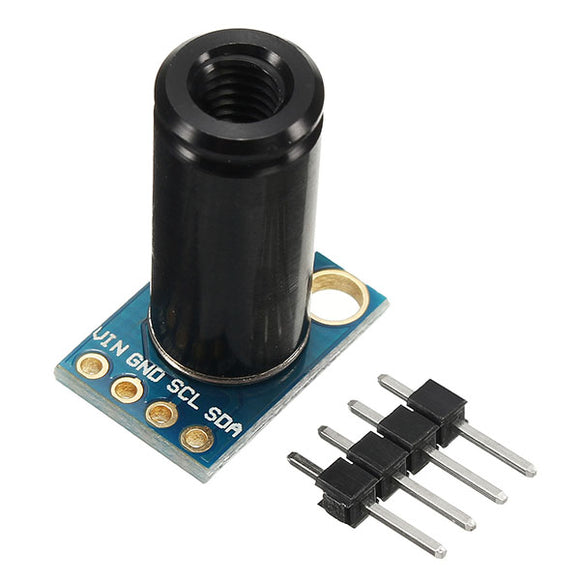

GY-MLX90614-DCI IIC Long Distance Infrared Temperature Sensor Module
Tax included.
Description:
Distance measured: 50cm
D ---- 3V medical application accuracy
C ---- Temperature gradient compensation
I ----- 3 ° FOV (angle)
Module model: GY-906-DCI
Use chip: MLX90614-DCI
Power supply: 3-5V (internal low voltage regulator)
Communication: Standard IIC communication protocol
Size: 11.5 x 16.5mm
Weight: 2g
Features and advantages:
Small size and low cost
Easy integration
(Medical) high precision calibration
Single and dual view versions
Compatible with SMBus digital interface
PWM continuous reading output
3V and 5V supply voltage
The supply voltage can be adjusted from 8 to 16V
Wide range of factory calibrated settings:
Sensor temperature range: -40 to +125 °C
Object temperature range: -70 to + 380 °C
Ta and To range from 0 to +50 °C with an accuracy of 0.5 °C
Measurement resolution: up to 0.02 °C
Applications:
High precision contactless measurement
Temperature sensors for automotive air conditioning control systems
Air conditioning temperature sensing elements for residential, commercial and industrial buildings
Windshield anti - fog applications
Detection of deadline in car vision
Temperature control for industrial mobile components
Printer, copier temperature control
Appliance temperature control
health care
Livestock monitoring
Moving object detection
Multi-zone temperature control - Two-wire communication supports up to 100 sensors
Thermal relay / alarm
Temperature measurement
Package includes:
1 x Module
