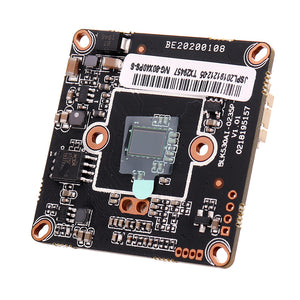

H.265AI/H.265+/H.264 4MP 2560*1440Pixel XM530AI+SC5239 1/2.7 CMOS Sensor IP Camera Module Board"

H.265AI/H.265+/H.264 4MP 2560*1440Pixel XM530AI+SC5239 1/2.7 CMOS Sensor IP Camera Module Board"

  • Save R 547.26
Tax included.
SKU:
Features:

- 4.0MP HD resolution,clear and fine images;
- Support 2D/3D noise reduction,digital wide dynamic;
- Advanced H.265AI/H.265+ (Compatible with H.265/H.264) video compression,low rate,high definition quality of image;
- Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5
- Support ONVIF;access third party;
- Support various mobile monitoring(iPhone,Android);
- Provide web,CMS,center platform management software MYEYE,provide SDK development;
- Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed.

Specifications:

Model

IVG-80X40PS-S

System structure

Embedded RTOS,dual-core 32bit DSP(XM530AI),pure hard compression ,watch dog

Sensor

1/2.7" SC5239 CMOS sensor ,color 0.1Lux@F1.2,black/white 0.01Lux@F1.2

Video compression

H.265AI/H.265+ (Compatible with H.265/H.264),support dual stream,AVI;0.1M~10Mpbs variable;1~30f/s variable

Image output

Main stream: 2560*1440@15fps (Only H.265X encoding is supported );2048*1440@25fps; sub-stream: 704*576@25fps;

Shutter

1/50(1/60)s to 1/10,000s

Lens

N/A

Day and night

Support IR-CUT

Noise reduction

Support 2D/3D

Wide dynamic

Support digital

Auto iris

N/A

Audio compression

G.711,support bidrectional talk,audio&video synchronization

Audio interface

1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone

Network interface

1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc

Extension interface

Extensions: USB WIFI

Singal interface

One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR

PTZ

N/A

Motor interface

N/A

Alarm I/O

1/0 (support alarm input and video link to background)

WIFI interface

N/A

Reset interface

N/A

SD Card

N/A

Reliability

Comprehensive lightning protection, 7 * 24 hours 65 ??nbsp;high temperature stable and reliable testing

Intelligence analysis

Supporting human detection and tripping line detection, and supports intelligent functions such as customized face detection, number statistics, etc.

Other function

Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture;united remote client monitoring sofaware,MYEYE;perfect SDK;

ONVIF

Support

Mobile monitoring

Support multiple mobile monitoring(iOS,Android)

Power

DC12V/2A input, power consumption:≤3W,

Dimension

38mm*38mm

Other

Support POE power supply, not support any custom

Interface Definition:

Parameters for IVG-85HF20PYA-S-2

Operation Of CMS:

1.download CMS on the website: http://www.xiongmaitech.com/en/index.php/service/down_detail/83/198

2.install it on your computer


Package Included:

1 x CMOS Sensor IP Camera Module Board
