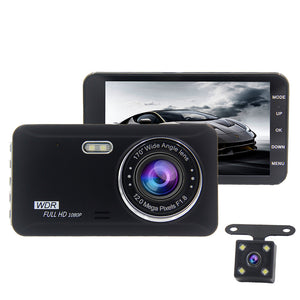

H306 4 Inch 1080P Auto Loop Recording Parking Monitor WDR Car DVR
Tax included.
Feature:
Special Function Description:
1. Automatic ON/OFF
The camera can automatically starts recording when connected to the vehicle power and stops recording with autosave after the car is stalled.
2. Loop recording without leakage seconds
3. M otion Detection
In standby mode,if there is any movement in front of the camera,it will automatically record the whole moving process. The camera will stop recording when there is no more movement.
4. Video/Photo Operation Instruction:
Power-on and shutdown
Please Long press the power button to switch on the camera,press it again to turn off the camera.
Please NOTE:
In low power state, the video camera will be automatically shut down after it displays low battery voltage.
Video
Click "Video" in the main interface to quickly enter the video recording status. The "Rec" is displayed in the upper right corner, indicating the recording work. Click "Video" again to exit the video, the video will be automatically saved.
Video Recording
Click "Record" on the main interface,and then click the red circle on the right side of the screen, and the flashing time will appear in the upper left corner, indicating the video work.
Camera Mode
Click "Camera Mode" on the main interface, then click the white circle on the right side of the screen, and then click, it indicates the picture is completed.
File Management
Click "Files" on the main interface, click on the camera icon to review the video, click the camera icon to review the photo has been taken. Video files and photo files can be operated (lock, delete, etc.).
System Setting
Click "Settings" on the main interface, and you can set it according to your own requirements.
USB MODE (Not included connect cable):
Connect the USB cable to the computer,the car camera recorder will automatically up the USB menu. There are three different modes to choose as below:
1. Memory Mode
In this mode ,you can access video files and photo files.
2. Camera Mode
Selecting this mode to up a USB video equipment for real-time photo or video chatting.
3. Camera Recording Mode( USB cable as a power supply in this mode)
In this mode,you can record the video,switch photo mode to take pictures.
Battery charging instructions:
There are three ways to charge the battery, the red indicator will light up in the charging process, the entire charging process time is about 180 minutes, the red indicator will be automatically off when fully charged.
1. Charging via the power adapter
2. Charging via PC-USB
3. Charging via car power supply
Package Included:
1 X Car DVR
1 X Rear Camera
1 X Car Charger
1 X Cable
1 X Manual
1 X Mount
| Product name | Car Camera Recorder |
| Product Features | HD Camera, HD Video Recording |
| Colour | Customized |
| Display Screen | HD Display |
| Lens | 170 degree A+ Level high resolution ultra wide angle lens |
| Language | Russian,Japanese,French, Italian,German,Spanish, English,Chinese(Simplified), Chinese(Traditional),Korean and so on |
| Video Resolution | Maximum 1080P |
| Video Format | AVI,MOV |
| Loop Recording | Seamless loop recording, no leakage seconds |
| AUTO ON/OFF | Support |
| M otion Detection Function | Support |
| Time/Date | Support |
| Camera Mode | 5 million |
| Photo Format | JPEG |
| Storage Card | TF (maximum support 32GB) |
| Parking Monitoring | Support |
| Microphone | Support |
| Built-in Sound | Support |
| Video Format | PAL / NTSC |
| Current Frequency | 50Hz / 60Hz |
| USB function | 1: USB-Disk 2: PC camera |
| Power Interface | 5V 1.5-2A |
| Battery | Built-in battery |
| WDR | Support |
