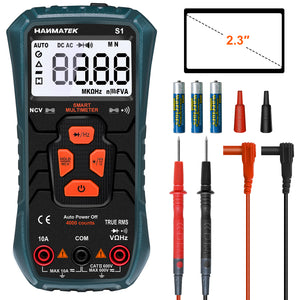

HANMATEK S1 NCV-Non Contact Backlit Digital Multimeter with Illumination
Tax included.
Size Conversion
Inches
Centimeters
Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.
Specification:
??br>??/p>
| Gear | Range | Resolution | Accuracy | Remarks |
| DC voltage (DVC) | 0.8V-600V | 0.001V-0.1V | ±(0.8%+5) | Minimum input voltage: 0.8V |
| Maximum input voltage: 600V | ||||
| Input impedance: 10M | ||||
| AC voltage (ACV) | 1V-600V (50-60HZ) | 0.001V-0.1V | ±(1.0%+5) | Minimum input voltage: 1V |
| Maximum input voltage: 600V | ||||
| Input impedance: 10M | ||||
| Resistance (Ω) | 0.1-40MΩ | 0.1Ω-10KΩ | ±(1.0%+5) | Overload protection 600V AC / DC |
| Current (A) | 0.001A-10A | 0.001A | ±(2.0%+5) | 10A fuse protection |
| Frequency (Hz) | 10Hz-2000Hz | 0.01Hz-1Hz | ±(2.0%+5) | Vpp 1V or more effective value |
| Maximum display value | 4000 | |||
| Automatic shut-down | ??/td> | No operation delay 5 minutes | ||
| Backlight | ??/td> | Auto-off after 30 seconds delay | ||
| flashlight | ??/td> | Auto-off after 30 seconds delay | ||
| diode | ??/td> | 2.0V | ||
| buzzer | Internal resistance is less than 50Ω | Overload protection 600V AC / DC | ||
| Buzzer indicator | ??/td> | |||
| NCV | ??/td> | ---- corresponds to the change of strength | ||
| NCV indicator | ??/td> | |||
| FireWire Discrimination | ??/td> | ---- corresponds to the change of strength | ||
| True effective value | ??/td> | 10-2KHz | ||
| Under voltage warning | ??/td> |
?ŠNOTE:In order to ensure transportation safety, we will ship without batteries!!!
Package includes:
??br>1 X HANMATEK S1 Multimeter
Details pictures:
