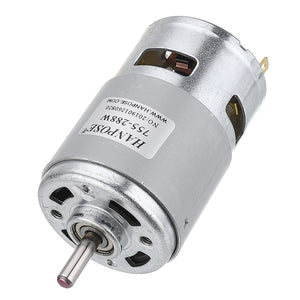

HANPOSE 775 Motor DC 12V 24V 80W 150W 288W DC Motor Large Torque High Power DC Motor Double Ball Bearing Spindle Motor
Tax included.
Description:
HANPOSE 775 Motor DC 12V 24V 80W 150W 288W Motor Large Torque High Power Motor Double Ball Bearing Spindle Motor
Specification:
Features:
1. Double ball bearing design.
2. With cooling fan.
3. Low noise, smooth running.
4. Provides 80W/150W/288W 3 types for you.
Package Included:
1 x 775 Motor
More Details:
HANPOSE 775 Motor DC 12V 24V 80W 150W 288W Motor Large Torque High Power Motor Double Ball Bearing Spindle Motor
Specification:
| Model | 775 |
| Shaft Diameter | 5mm |
| Mounting hole size | M4 |
| Mounting hole | 2 |
| Motor Power(W) | Rated Voltage(V) | Maximum Current(A) | Maximum Torque(KG) | Maximum Speed(RPM) |
| 80W | 12 | 6A | 1.8 | 4000 |
| 24 | 8000 | |||
| 150W | 12 | 12A | 3.2 | 7500 |
| 24 | 15000 | |||
| 288W | 12 | 12A | 3.8 | 6000 |
| 24 | 12000 |
Features:
1. Double ball bearing design.
2. With cooling fan.
3. Low noise, smooth running.
4. Provides 80W/150W/288W 3 types for you.
Package Included:
1 x 775 Motor
