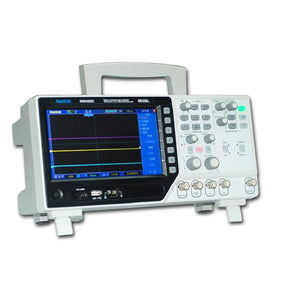

Hantek DSO4202C 2 Channel Digital Oscilloscope 1 Channel Arbitrary/Function Waveform Generator From
Large (7.0-inch) color display,WVGA(800x480).
Model |
DSO4202C |
|
Sample Rate |
Sampling Rate Range: 1GSa/s |
|
Equivalent Sample Rate: 25GSa/s | ||
Normal |
Normal data only |
|
Peak Detect |
High-frequency and randon glith capture |
|
Average |
Wavefom Average, selectable 4,8,16,32,64,128 |
|
Inputs Coupling |
AC, DC, GND |
|
Inpits Impendance |
1MΩ±2% 20pF±3pF |
|
Probe Attenuation |
1X, 10X |
|
Supported Probe Attenuation Factor |
1X, 10X, 100X, 1000X |
|
Maximum Input Voltage |
CAT I and CAT II: 300VRMS (10×) |
|
CAT III: 150VRMS(1×); | ||
Installation Category II: derate at 20dB/decade above 100kHz to 13V peak AC at | ||
Sample Rate Range |
1GS/s |
|
Waveform Interpolation |
(sin x)/x |
|
Record Length |
40K |
|
SEC/DIV Range |
2ns/div to 40s/div |
|
Sample Rate and |
±50ppm(at over any ≥1ms time interval) |
|
Delay Time Accuracy | ||
Position Range |
2ns/div to 10ns/div; |
|
(-4div x s/div) to 20ms; | ||
Vertical Resolution |
8-bit resolution, all channel sampled simultaneously |
|
Position Range |
2mV/div to 10V/div |
|
Bandwidth |
200MHz |
|
Rise Time at BNC( typical) |
1.8ns |
|
Analog Bandwidth in Normal and |
2mV/div to 20mV/div, ±400mV; 50mV/div to 200mV/div, ±1V |
|
500mV/div to 2V/div, ±40V; 5V/div, ±50V | ||
Math |
+, -, *, /, FFT |
|
FFT |
Windows: Hanning, Flatop, Rectamgular, Bartlett, Blackman; |
|
1024 sample point | ||
Bandwidth Limit |
20MHz |
|
Low Frequency Response (-3db) |
≤10Hz at BNC |
|
DC Gain Accuracy |
±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; |
|
±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div | ||
DC Measurement Accuracy, |
When vertical displacement is zero, and N ≥16:± (3% × reading + 0.1div + 1mV) |
|
Volts Measurement Repeatability, |
Delta volts between any two averages of ≥16 waveforms acquired |
|
Trigger Types |
Edge, Video, Pulse, Slope, Over time, Alternative |
|
Trigger Source |
CH1, CH2, EXT, EXT/5, AC Line |
|
Trigger Modes |
Auto, Normal, Single |
|
Coupling Type |
DC, AC, Noise Reject, HF Reject, LF Reject |
|
Trigger Sensitivity |
DC(CH1,CH2): |
|
1div from DC to 10MHz; 1.5div from 10MHz to 100MHz; 2div from 100MHz to Full; | ||
DC(EXT): | ||
200mV from DC to 100MHz; 350mV from 100MHz to 200MHz; | ||
DC(EXT/5): | ||
1V from DC to 100MHz;1.75V from 100MHz to 200MHz; | ||
AC: Attenuates signals below 10Hz; | ||
HF Reject: Attenuates signals above 80kHz; | ||
LF Reject: Same as the DC-coupled limits for frequencies above | ||
Trigger Level Range |
CH1/CH2: ±8 divisions from center of screen; |
|
EXT: ±1.2V; | ||
EXT/5:±6V | ||
Trigger Level Accuracy( typical) |
CH1/CH2: 0.2div × volts/div within ±4 divisions from center of screen; |
|
EXT: ± (6% of setting + 40mV); | ||
EXT/5: ± (6% of setting + 200mV); | ||
Set Level to 50%(typical) |
Operates with input signals ≥50Hz |
|
Video Trigger Type |
CH1, CH2: Peak-to-peak amplitude of 2 divisions; |
|
EXT: 400mV; | ||
EXT/5: 2V | ||
Signal Formats and Field Rates, |
Supports NTSC, PAL and SECAM broadcast systems for any field or any line |
|
Holdoff Range |
100ns ~ 10s |
|
Pulse Width Trigger Mode |
Trigger when (< , >, = , or ≠); Positive pulse or Negative pulse |
|
Time Range |
20ns ~ 10s |
|
Over Time Mode |
Rising edge or Falling edge |
|
Time Range |
20ns ~ 10s |
|
Trigger on CH1 |
Internal Trigger: Edge, Pulse Width, Video, Slope |
|
Trigger on CH2 |
Internal Trigger: Edge, Pulse Width, Video, Slope |
|
Readout Resolution |
6 digits |
|
Accuracy (typical) |
±30ppm (including all frequency reference errors and ±1 count errors) |
|
Frequency Range |
AC coupled, from 4Hz minimum to rated bandwidth |
|
Signal Source |
Pulse Width or Edge Trigger modes: all available trigger sources |
|
The Frequency Counter measures trigger source at all times, including when the | ||
Pulse Width Trigger mode: The oscilloscope counts pulses of significant magnitude | ||
Edge Trigger mode: The oscilloscope counts all edges of sufficient | ||
Video Trigger mode: The Frequency Counter does not work. | ||
Cursor Measurement |
Voltage difference between cursors: V |
|
Time difference between cursors: T | ||
Reciprocal of T in Hertz (1/ΔT) | ||
Auto Measuerment |
Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, |
|
+Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, | ||
Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, | ||
FRF, FFR, LRR, LRF, LFR, LFF | ||
Waveform Impedance |
DC-25MHz |
|
Sample Rate |
200MHzDDS |
|
Output Waveform |
Arbitrary wave/square wave/sine wave/triangle wave/trapezoidal wave/pulse wave/DC |
|
Frequency Resolution |
0.1% |
|
Waveform Depth |
4KSa |
|
Vertical Resolution |
12bit |
|
Frequency Stability |
<30ppm |
|
Waveform Range |
±3.5V Max |
|
Output Impedance |
50 |
|
Output Current |
50mA Ipeak=100mA |
|
System BW |
25M |
|
Harmonic Distortion |
-50dBc(1KHz),-40dBc(10KHz) |
|
General Features | ||
Display |
||
Display Type |
7 inch 64K color TFT (diagonal liquid crystal) |
|
Display Resolution |
800 horizontal by 480 vertical pixels |
|
Display Contrast |
Adjustable (16 gears) with the progress bar |
|
Probe Compensator Output | ||
Output Voltage( typical) |
About 5Vpp into ≥1MΩ load |
|
Frequency(typical) |
1kHz |
|
Power Supply | ||
Supply Voltage |
100-120VACRMS(±10%), 45Hz to 440Hz, CAT |
|
120-240VACRMS(±10%), 45Hz to 66Hz, CAT | ||
Power Consumption |
<30W |
|
Fuse |
2A, T rating, 250V |
|
Environmental | ||
Size |
Length 385mm, Width 200mm, Height 245mm |
|
Weight |
3.5KG(with Packing); 2.08KG(without Packing) |
