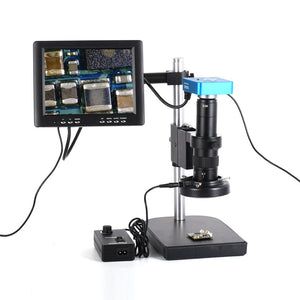

HAYEAR Full Set 34MP Industrial Microscope Camera HDMI USB Outputs with 180X C-mount Lens 60 LED Light Microscope with 8 HD LCD Screen"
Tax included.
Noting:
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.
4:when connect the camera with computer, just plug the USB line is OK ( no need to use the power supply)
Features:
Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 34 MegaPixel
Video format: MP4(for TF card)
Video recor der: 2K@30FPS, 1080P@60FPS
HDMI Video resolution: 1920*1080 @ 60FPS
USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS
White Balance: Auto/Manual
Light: Auto/Manual
Exposure: Auto/Manual, value adjustable
Color: Color
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Japanese/German
Line: different color,5 horizontal line , 5 vertical line,any positions
Specification:
Image sensor: 34 megapixel Panasoni c CMOS sensor 1/2.33 inch
Effective pixel: 34 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:C/CS
Video format: MOV
Digital Zoom:Support
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and recor d:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color,5 horizontal line , 5 vertical line,any positions
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
USB interface:Standard usb2.0 interface (Type B)
Input Voltage: DC 12V
C-MOUNT Lens:
Working distance: 95mm
Zoom c-mount Lens
0.5X C-mount adapter
Zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
Weight: 450g
60 LED Light:
Light source: 60pcs LED
Input Voltage: AC90-240V
Output Voltage: DC12V
Output frequency: 4.5W
Working Distance: 40-160mm
Illumination: 30000LUX-35000LUX
color temperature: 6500K-7000K
brightness rang e control: 0% - 100%
light Color: cool white
Product Light: >
Valid optical length: 75mm
Valid optical pat h: 30mm
Power box size: 110 x 60 x 30mm
Material of power box: Plastic
Color: Black
Inside dia. Of Ring Light: 61.5mm
Outside dia. Of Ring Light: 94mm
Inside dia. Of ring holder: 26mm
Outside dia. Of ring holder: 45mm
8 Inch Monitor:
Panel Size: 8 inches
LCD Type: TFT LED
Physical Resolution: 800 × 600
Display Ratio: 4: 3
Display Color: 16.7M
Point Distance (mm): 0.264
Brightness (nits): 250cd / ??/span>
Contrast Ratio: 300: 1
View (Up / Down / Left / Right): 160 ° / 160 °
Response Time: 6ms
Power Supply DC: 12V 1A
Field Frequency: 50Hz, 60Hz, 70Hz
Signal Interface: AVC × 1, BNC × 1, VGA × 1, HDMI × 1
Color Format: PAL / NTSC / SECAM
Menu Operation OSD: keypad / remote control
Menu Language (optional): Simplified Chinese, Traditional Chinese, English, Russian, French, Spainish, German, Italian
Installation: Base Support / Wall
Package Includes:
1 x Microscope Camera
1 x 12V/1A Power supply (We will send you a plug adapter according to your country.)
1 x USB line
1 x Software DISC
1 x 180X Zoom C-mount Lens
1 x Camera Stand
1 x 60-LED Ring Light with Power Adapter
1 x 8 inch Monitor
