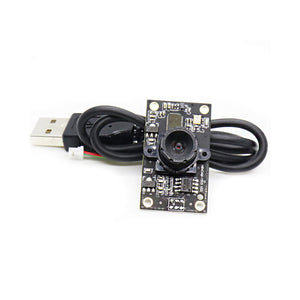

HBV-1515 1MP Cmos Sensor Camera Module USB2.0 Free Drive NT99141 Sensor 1280*720P 30fps 60 with 40cm USB Cable

Tax included.

Specifications:

Model No.	HBVCAM-1515 V33
Model Size	38mm ? 22mm ? 14.9mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power supply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	500mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	NT99141 (1/4??)
Seneor Package	CSP,Bare Die
Maximum resolution	1280*720
Sensitivity	3500mV /(lux-sec)
Pixel Size	3.0μm x 3.0μm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 320x240 30FPS MJPEG 1280x720 30FPS / YUY2 352x288 30FPS YUY2 640x480 30FPS YUY2 1280x720 10FPS
S/N Ratio	40B
Max Dynamic Range	69B
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	2G2P
F/No	2.4
EFL	2.54mm
FOV	82°
TV Distortion	<-3%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
USB cable	40CM
1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don?™t make an order for it. Thank you for your understanding

Package Included:

1 x HBV-1515 1MP Cmos Sensor Camera Module

1 x USB Cable

Note:

A. Purchase quantity ??0, support lens replacement

B. Purchase quantity ??00, support customization

1. First explain the specific parameter requirements of the product you need, the more detailed the better.

2. Provide product size structure diagram, PIN angle definition, etc.
