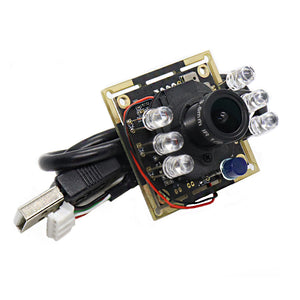

HBV-1716 IR-CUT Infrared Lamp 1080P HD 2 Million Pixel Camera Module Automatically Switches the Night and Day Mode 2MP
Tax included.
Specifications:
| Model No. | HBV-1716 IR-CUT |
| Model Size | 38mm ? 38mm ? 24.2mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1650 mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc |
| Sensor | OV2710 (1/2.7??) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1920*1080 |
| Sensitivity | 10mv /(lux-sec) |
| Pixel Size | 3μm x 3μm |
| Maximum Image Transfer Rate |
MJPEG 160x120 30FPS / YUY2 160X120 30FPS MJPEG 320X240 30FPS / YUY2 320X240 30FPS MJPEG 352X288 30FPS / YUY2 32X288 30FPS MJPEG 640X480 30FPS / YUY2 640X480 30FPS MJPEG 1280x720 30FPS / MJPEG 1920x1080 30FPS / |
| S/N Ratio | 39B |
| Max Dynamic Range | 69B |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 3.0mm |
| FOV | 94 |
| TV Distortion | <1% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
| USB cable | 50 |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don?™t make an order for it. Thank you for your understanding | |
Package Inlcuded:
1 x HBV-1716 IR-CUT Infrared Lamp 1080P HD 2 Million Pixel Camera Module
1 x USB Cable
Note:
A. Purchase quantity ??0, support lens replacement
B. Purchase quantity ??00, support customization
1. First explain the specific parameter requirements of the product you need, the more detailed the better.
2. Provide product size structure diagram, PIN angle definition, etc.
