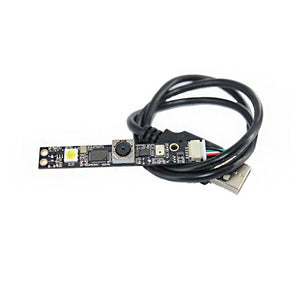

HBV-1825 OV5640 5 Million Pixel Autofocus Camera Module with Flash Light 5Pin Auto Focus USB2.0 5MP Camera Board
Tax included.
Specifications:
| Model No. | HBV-1825 |
| Model Size | 62mm ? 9mm ? 5.68mm±0.2MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Auto |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| Interface | USB 2.0 |
| Power | USB bus power |
| Maximum Power consumption | 1200mW |
| Package | Anti-electrostatic tray |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Certifications | FCC and CE |
| Active Array Size | 2592*1944 |
| Sensor | OV5640 (1/4??) |
| Sensitivity | 600mv /(lux-sec) |
| Pixel Size | 1.4µm x1.4µm |
| Maximum Image Transfer Rate | MJPEG 1280x720 30FPS / YUY2 1280x720 12FPS MJPEG 1280x960 15FPS / YUY2 1280x960 5FPS MJPEG 1600x1200 15FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 15FPS / YUY2 2048x1536 5FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 2FPS |
| S/N Ratio | 36db |
| Dynamic Range | 68db |
| Package | CSP,Bare Die |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Type | / |
| Lens Construction | 4P |
| F/No | 2.8 |
| EFL | 2.7mm |
| FOV | 65° |
| TV Distortion | <0.24% |
| Relative Illumination (Sensor) | 70% |
| R Filter | 650 ± 10nm |
| DSP Type | HBV5640 |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | USB suspend out |
| Fixed Pattern Noise | < 0.03% of V PEAK-TO-PEAK |
| Package | LQFN-40pin |
Package Inlcuded:
1 x HBV-1825 OV5640 5 Million Pixel Autofocus Camera Module
1 x USB Cable
Note:
A. Purchase quantity ??0, support lens replacement
B. Purchase quantity ??00, support customization
1. First explain the specific parameter requirements of the product you need, the more detailed the better.
2. Provide product size structure diagram, PIN angle definition, etc.
