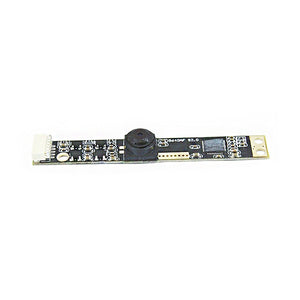

HBV-5640 FF Fixed Focus 5MP USB OV5640 Laptop Camera Module 5 Million Pixels Camera 2592*1944
Tax included.
Specifications:
| Model No. | HBVCAM-5640FF |
| Model Size | 60mm ? 8.5mm ? 6.5mm±0.2MM |
| Temperature (Operation) | -20°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | fixed |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| Interface | USB 2.0 |
| Power | USB bus power |
| Power consumption | 650 mW |
| Package | Anti-electrostatic tray |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Certifications | FCC and CE |
| Maximum Resolution | 2592*1944 |
| Sensitivity | 600mv /(lux-sec) |
| Pixel Size | 1.4µm x1.4µm |
| Maximum Image Transfer Rate | MJPEG 1024x768 30FPS / YUY2 1024x768 6FPS MJPEG 1280x720 30FPS / YUY2 1280x720 6FPS MJPEG 1280x960 30FPS / YUY2 1280x960 4FPS MJPEG 1600x1200 15FPS / YUY2 1600x1200 1FPS MJPEG 2048x1536 15FPS / YUY2 2048x1536 1FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 1FPS |
| S/N Ratio | 36db |
| Dynamic Range | 68db |
| Package | CSP,Bare Die |
| Lens Type | / |
| Lens Construction | 4P |
| F/No | 2.8 |
| EFL | 3.3mm |
| BFL(Optical) | 2.8mm |
| FOV | 60° |
| TV Distortion | <-1% |
| Relative Illumination (Sensor) | 70% |
| R Filter | 650 ± 10nm |
| DSP Type | HBV5640 |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | USB suspend out |
| Fixed Pattern Noise | < 0.03% of V PEAK-TO-PEAK |
| Package | LQFN-40pin |
Package Inlcuded:
1 x HBV-5640 FF Fixed Focus 5MP USB OV5640 Laptop Camera Module
Note:
A. Purchase quantity ??0, support lens replacement
B. Purchase quantity ??00, support customization
1. First explain the specific parameter requirements of the product you need, the more detailed the better.
2. Provide product size structure diagram, PIN angle definition, etc.
