High Voltage Generator DC3-5V Rechargeable Electronic Assembly Arc Ignition Parts High Frequency Arc
Tax included.
Product Usage:
Electronic instruments, electronic lighters, scientific small production, etc. This circuit works with a stable high-frequency arc, which is extremely high in temperature and can easily ignite combustibles. Therefore, it is called a plasma lighter.
Product Parameters:
Package Included:
Electronic instruments, electronic lighters, scientific small production, etc. This circuit works with a stable high-frequency arc, which is extremely high in temperature and can easily ignite combustibles. Therefore, it is called a plasma lighter.
Product Parameters:
| Size | 14x14x7.8(mm) |
| Working voltage | 3-5V DC |
Working current |
1.5A-2.5A |
| Rated function | 5-8W |
| Continuous working time | no more than 10 seconds |
| Output pulse voltage | 0.5KV-0.8KV |
| Working frequency | 20KHZ-25KHZ |
| Arc distance | 3mm-6mm |

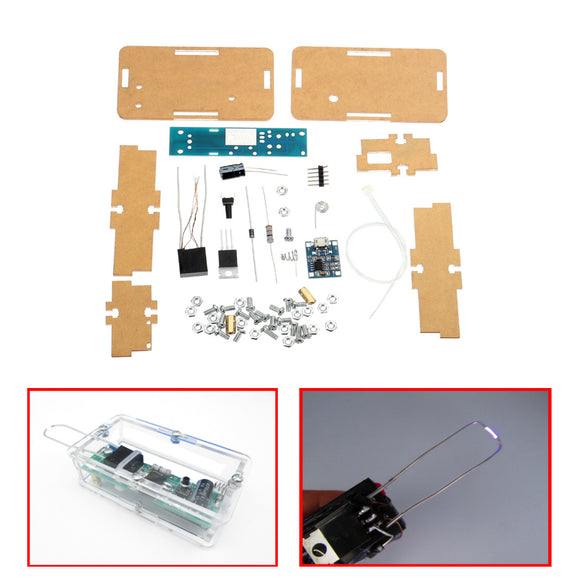

Package Included:
1 x PCB board
1 x High voltage package transformer
1 x Cable tie
1 x Battery positive pole piece
1 x Battery negative pole piece
1 x M3*6 screw
1 x M3 nut
1 x UF4007 fast recovery diode
1 x 1W 30 ohms - 50 ohms
1 x D880 Transistor
1 x 6*6*12 button
1 x 470UF capacitor 16V
1 x Charging board
1 x Shell parts
