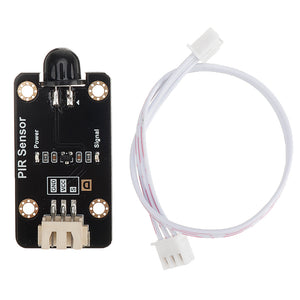

Human Infrared PIR Sensor Module for pyboard MicroPython Programming Learning Development Board

Overview:



Human infrared pyroelectric sensor. This sensor can detect the infrared rays emitted by the body of a moving human or animal and output a switch signal. It can be used in combination with a microbit expansion board and can be applied to various occasions that need to detect a moving human or animal.



Specifications:



Supply voltage: 3.3-5 V

Working current: <20mA

Working temperature: -20-65 ??/span>

Interface and definition: XH2.54 (3Pin: GND / VCC / Single)

Output signal: digital signal output

Induction angle: 100 °

Induction distance: 5-8M

Module size: 25 * 45mm



Package Included:



1 x Human Infrared Sensor Module for pyboard MicroPython Programming
