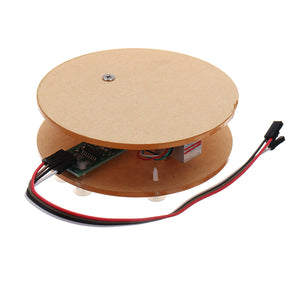

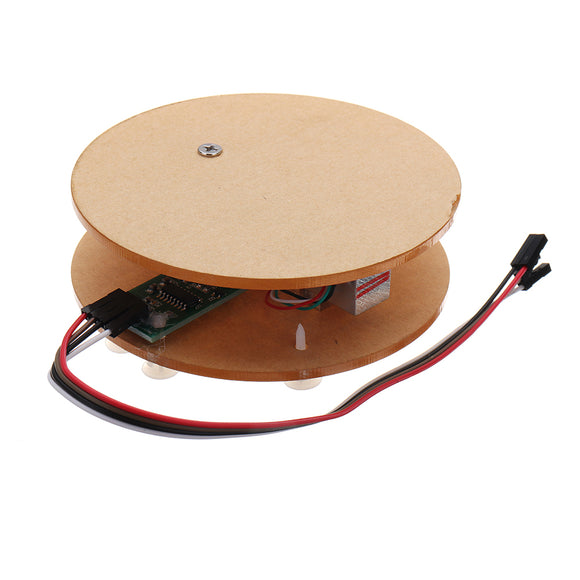

HX711 5KG Digital Load Cell Weight Pressure Sensor Portable Electronic Scale Module With Shell

Features:



- This module uses 24 high precision A/D converter chip HX711. It is a specially designed for the high precision electronic scale design with two analog input channel the

- Internal integration of 128 times the programmable gain amplifier. The input circuit can be configured to provide a bridge type pressure bridge (such aspressure weighing sensor mode)is of high precision low cost is an ideal sampling front-end module.

- Four leads, easy to use

- 5-10V drive voltage applied, the force is directly output as a voltage change signal.



Specifications:



Load cell size: 80 mm x12.7 mm x 12.7 mm

Module size: 24 mm x 16 mm

Operation < 1.5mApower down < 1uA

Operation supply voltage range: 2.6 ~ 5.5V

Operating Temperature Range:-20 degree ~ +8 5degree



- Two selectable differential input channels

- On-chip active low noise PGA with selectable gain of 3264 and 128

- On-chip power supply regulator for load-cell and ADC analog power supply

- On-chip oscillator requiring no external component with optional external crystal

- On-chip power-on-reset

- Simple digital control and serial interface: pin-driven control programming needed

- Selectable 10SPS or 80SPS output data rate

- Simultaneous 50 and 60Hz supply rejection



Connection:



Red to E+

Black to E-

Green to A+

White to A-



Package Included:



1 X 5KG HX711 Weight Sensor Module
