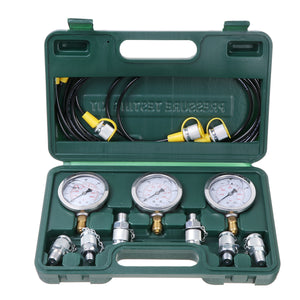

Hydraulic Pressure Gauge Excavator Hydraulic Pressure Test Kit With Testing Hose
Feature:
1.This kit is used for construction machinery excavator hydraulic pressure test.
2.The excavator hydraulic pressure test kit contains test point coupling, pressure gauge, test hose, connector, diverse and complete.
3.The pressure measuring hose has the characteristics of heat resistance, pressure resistance.
4.With a box for protection of the test tool and convenient to store.
Specification:
|
Pressure Gauge
|
Dia. 63mm~25MPa (250bar/3625psi)
|
|
Pressure Gauge
|
Dia. 63mm~40MPa (400bar/5800psi)
|
|
Pressure Gauge
|
Dia. 63mm~60MPa (600bar/8700psi)
|
|
Test Hose Length
|
1500mm/59in
|
|
Test Coupling
|
M10*1
|
|
Test Coupling
|
M14*1.5
|
|
Test Coupling
|
G1/4
|
|
Test Coupling
|
R1/4
|
|
Test Connection
|
UNF7 / 16-20
|
|
Test Connection
|
NPT1 / 4-18
|
|
Operating Temperature
|
-40?ƒ~+100??/span>
|
|
Weight
|
1918g(approx.)
|
|
Colour
|
As the picture show
|
|
Material
|
Carbon steel galvanized
|
Note:
1.Only the above package content, other products are not included.
2.Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Package included:
|
3 X 3 X 6 X 1 X
|
Pressure Gauges Hose test Test couplings box
|
