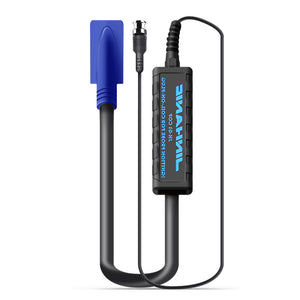

JINHANNIC Oscilloscope Probe for Hantek Virtual Oscilloscope and Digital Oscilloscope Rate 5000:1
Tax included.
Descriptions:
JH-01 COP used in independent ignition system,to measure second ignition high-voltage waveform, max decay ratio could be 5000:1.
After set up the oscilloscope,connect the probe to it,
put the sensor side tightly attached to independent ignition coil,
then second ignition waveform will be induced.
Notice: set time-base to 1 ms, set vertical grid to 1v,
if necessary could chose normal trigger on oscilloscope,
adjust trigger to right position until the waveform keeps stable.
Package Included:
1 x Oscilloscope Probe
Details Pictures:
