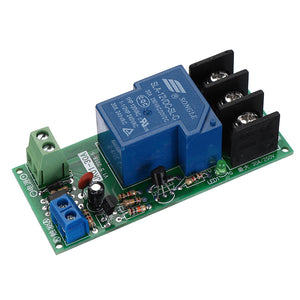

JK01-30A 12V 0-60Min Trigger Delay Optocoupler Isolation Multi-function Relay Module 30A Timer Relay
Tax included.
Features:
- The delay length setting requires a soldering iron to be short-circuited according to the time value in the table.
- When all the short contacts are disconnected, the trigger is bistable, that is, the trigger is triggered, and then the trigger is disconnected.
- The control signal is triggered, and the signal is cancelled or maintained after the trigger does not affect the delay.
- Trigger again during the delay and will re-clock
- If the button is shorted, each time the control panel is powered up, a trigger delay action will be generated, which is equivalent to pressing the trigger button once.
- Module board size: 82mm x 35mm
- This module has reverse power protection.
Package Included:
1 x JK01-30A 12V 0-60Min Trigger Delay Optocoupler Isolation
