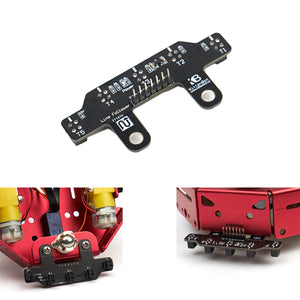

KittenBot Five Road 5 Channel Tracking Line Obstacle Avoidance Sensor Module Supports Scratch/Arduino/Makecode
Tax included.
Features:
- Using the ITR20001 Reflective Photoelectric Sensor
- Five ITR20001/T infrared light detectors are used with higher sensitivity, wider detection range and anti-interference.
- Five-channel analog output, higher accuracy, so that the tracking range of the car is wide and stable
Package Included:
1 x Infrared Tracking Sensor
- Using the ITR20001 Reflective Photoelectric Sensor
- Five ITR20001/T infrared light detectors are used with higher sensitivity, wider detection range and anti-interference.
- Five-channel analog output, higher accuracy, so that the tracking range of the car is wide and stable
- Suitable for training institutions to do the patrol course case, and suitable for diy and enthusiasts for advanced applications such as patrol car
- T2-T4 : Generally used for patrol obstacle avoidance trolleys
Robotbit-- 5 Channel Sensor Module
P2--T4
P1--T3
P0--T2
GND--G
5V/3.3V--5V
Specifications:Operating voltage: 3.3V~5V
Product size: 72*28mm
Probe spacing: 11mm
Fixing hole size: 5mm
Sensing distance: 1cm~5cm
Package Included:
1 x Infrared Tracking Sensor
