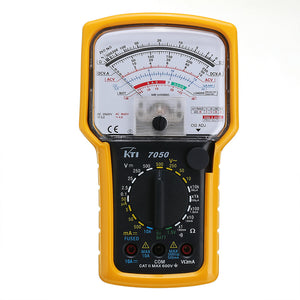

KT7050 Original Authentic Precision Analog Multimeter Sensitive 50uA SMT Printing Circuit Board Overload Protection DCV ACV DCA Continuity Buzzer
Tax included.
Descriptions:
The analog multimeter KT-7050 is an essential tool to find any fault. It can be applied to measure current, resistance and voltage. It is very high measuring accuracy. Plastic holster and compact design, this multimeter is suitable for factories, schools, families, and amateur radio enthusiasts.
The analog multimeter KT-7050 is an essential tool to find any fault. It can be applied to measure current, resistance and voltage. It is very high measuring accuracy. Plastic holster and compact design, this multimeter is suitable for factories, schools, families, and amateur radio enthusiasts.
Features:
Functional, security, precision accurate, stable quality analog multimeters Appearance patents have been patented.
SENSITIVITY 50uA
SMT Printing Circuit Board
Overload Protection
DCV ACV DCA Ω Continuity Buzzer
CAT II 600V
??Analogue multimeter in a handy compact housing
??Mirror scale feature for accurate reading
??20 ranges in 7 functions
??Overload protection
??AC/DC voltage measurement up to 500V
??DC current measurement up to 10A
??Resistance measurement up to 20MΩ
??Audible continuity & diode tests
??LED test
??Battery test 1.5V & 9V
??Input impedence: 20KΩ/ VDC,9KΩ/ VAC
Specifications:
DC Voltage 0.1/2.5/25/250/500V (±3.0% f.s)
AC Voltage 10/50/250/500V (±4.0% f.s)
DC Current 0.05m/5m/50m/500m/10A (±3.0% f.s)
Resistance 2K/20K/200K/2M/20MΩ (±3.0% of full arc)
Battery check 1.5V (150mA), 9V (15mA)
Continuity test Approx. 0??0Ω
dB measurement: -10~56 (0dB 1mW/600Ω)
Operating temperature 0~40??(32~104oF) at RH<80%
Dimensions 190x108x50mm
Weight Approx. 470g included battery
Measurement Category EN61010-1,CAT II,600V
Power supply: 9V 6F22 battery×1,1.5V AA battery*2(included battery)
Package Includes:
1 x KT-7050 Analog Multimeter
1 x Test Leads
1 x Protective case
1 x English User Manual
Detail Pictures:
