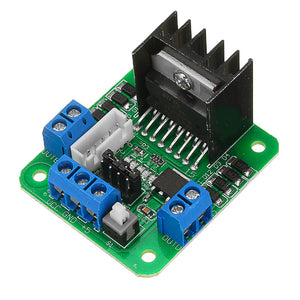

L298N Double H Bridge Motor Driver Board Stepper Motor L298 DC Motor Driver Module Green Board for Arduino
Tax included.
Specifications:
1. Driver chip: L298N double H bridge DC motor driver chip
2. Drive part terminal power supply range Vs: +5V to +35V (If you need to take power inside the board, the power supply range is Vs: +7V ~ +35V)
3. Drive part of the peak current: 2A
4. Logic part terminal power supply range Vss: +5V ~ +7V (can take power +5V inside the board)
5. Logic part operating current range: 0 ~ 36mA
6. Control signal input voltage range:
Low level: -0.3V≤Vin≤1.5V
High level: 2.3V≤Vin≤Vss
7. Enable signal input voltage range:
Low level: -0.3≤Vin≤1.5V (control signal is invalid)
High level: 2.3V ≤ Vin ≤ Vss (control signal is valid)
8. Large power consumption: 20W (at temperature T=75°C)
9. Storage temperature: -25 ° C ~ +130 ° C
10. Driver board size: 48mmx43mmx33mm (with fixed copper post and heat sink height)
11. Driver board weight: 33g
12. Other extensions: control direction indicator, power take-off interface in the logic part.
Instructions for Use:
1. Stepper motor drive:
The ENA and ENB on the board are active high, and the level here refers to the TTL level. ENA is the enable of A1 and A2, and ENB is the enable of B1 and IB2. BJ is connected to the common end of the stepper motor.
2. Stepper motor control logic:
Among them, A, B, C, and D are the four coils of the stepping motor, and 1 means that current flows, and 0 means no current flows.
Package Included:
1 x L298N Motor Driver Board
