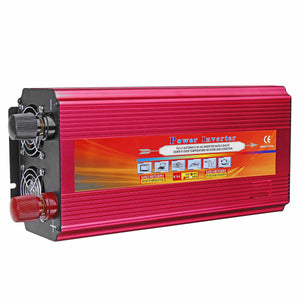

LCD Power Inverter DC 12V/24V to AC 110V/220V Modified Sine Wave Converter
Tax included.
Specifications:
Peak Power : 12000W
Rated power : 2000W (Please Ensure the Rated Power is Higher than the electric appliance you wanna apply to.)
Input Vottage: 12V/24V
Output voltage: AC 220V/50Hz ± 3Hz
AC 110V/60Hz ± 3Hz
No load current: <0.9A
5 Digital Display Content: Battery Electric QuantityInput/Output Voltage LCD Display
Output voltage waveform: Modified Sine Wave
Conversion Efficiency:90%
Appearance
- Color: Red
- Material: Aluminum Alloy
- Socket Style: Universal Socket
- Double Cooling Fan: Intelligent Self-control, will auto-start when it`s overheat or when you use high-power load.
- USB output Charging interface available.
- 2 Pole Terminal: Red for Positive & Black for Negative
- Manual Switch (you must turn on it after connecting the battery and appliance, and turn off before disconnecting)
Features:
- The inverter can convert DC12/24V to AC 110V/220V.
- 12V is generally for cars, 24V for trucks.
- Available Range Of Rated Voltage Of Electrical Appliances : 210~230V, 110~130V
- Safe Range Of Input Voltage:
??2V : 9.8~15V
??4V : 20~28V
- 8 Safety Protection Function:
?袠everse polarity protection
?‥ow input voltage protection
?％igh input voltage protection
?Μver-current protection
?又hort circuit protection
?令ver temperature protection
?吏verload protection
?兌nternal fuses
Application:
- Main Applicable Loads for Rated Power 2000W:
20W-LED Lamp
60W-Mechanical Electric Fan
100W-Non-laser Printer
200W-Desktop Computer
300W-Audio Amplifier Equipment
300W-Electric Hand Mill
300W-Electric Hand Drill
500W-Rice Cooker
600W-Heater
900W-Intelligent Rice Cooker
1000W-Induction Cooker
1000W-Hair Drier
1200W-Electric Kettle
1400W-Steam Iron
-Inapplicable Loads for Rated Power 2000W:
?狢nductive load (appliance that equipped with motor, compressor) like Fan, Dust Cleaner, Sinking Pump of a power over about 800W will be inapplicable, coz this item is a modified sine wave inverter.
?‥ow-power inductive load like 80W-Car Refrigerator, 80W-Aquariums Pump, 150W-Household Refrigerator, 150W-Sinking Pump,600W-Percussion Drill, 600W-Dust Cleaner will be applicable, but you`d better not to use it for long time.
Note:
?蘯lease Ensure the Rated Power is higher than the electric appliance you wanna apply to.
?，nd if you wanna run several appliance at the same time, you should refer to the total Watt.
?＠f you wanna run a inductive load for a long time, it`s suggested to buy a pure sine wave inverter.
Package Included:
1* Solar Inverter
2* Alligator-Clip Battery Cable (Red for Positive & Black for Negative)
2*Rotating Terminal (Red for Positive & Black for Negative)
2* Insurance Fuse
4*Metal Ring Gasket
