Lichee Pi Zero 1GHz Cortex-A7 512Mbit DDR Development Board Mini PC
Tax included.
| Functional Overview | |
| CPU |
Allwinner V3S, ARM Cortex-A7, up to 1.2GHz |
| Memory and storage |
Integrated 64MB DDR2 Reserved SOP8 SPI Flash pad (customizable patch 8~32MB SPI Nor Flash, 128MB Nand Flash) Onboard half-slot TF card holder, can be started by TF |
| display |
Universal 40P RGB LCD FPC Socket Can be directly inserted into the common 40P 4.3/5/7 inch screen (onboard backlight driver), through the adapter board can be inserted 50P 7/9 inch screen Support common 272x480, 480x800, 1024x600 and other resolutions On-board resistive touch screen chip supporting resistive screen Onboard RGB LED |
| Communication Interface |
SDIO x2, can be used with the SDIO WiFi+BT module SPI x1, I2C x2, UART x3 100M Ether x1 (with EPHY) OTG USB x1 MIPI CSI x1 |
| Other interface |
PWM x2 LRADC x1 Speakerx2 + Mic x1 |
| Electrical characteristics |
Micro USB 5V power supply; 2.54mm pin 3.3V~5V power supply; 1.27mm stamp hole power supply Output 3.3V and 3.0V (AVCC), optional input RTC voltage 1GHz linux no-load running current 90~100mA, full load running current ~180mA Storage temperature -40~125°C, operating temperature -20~70°C |
Software function:
Support linux 3.4 bsp kernel, linux 4.16 mainline kernel
Support Qt, python and other common linux applications
| Size and weight | |
| Core board size | 25.4x45.0mm |
| Development board size | 47.0x47.0mm |
| Core board weight | 5.0±0.1g |
| Development board weight | 14.5±0.5g |
| Precautions | |
| start up |
Zeros requires the card to start (or solder SPI flash), only plug in the USB without any phenomenon |
| System debug serial port |
UART0, specific position reference pin diagram |
| USB interface |
OTG usb, power and communication |
| Bottom debugging |
It is recommended to use usb to serial port small board to connect "U0T R" and "G 5V" |
| Operating temperature | -20~85??/span> |
| Running current |
Running Linux no-load current is about 100mA, full load current is about 150~180mA, and LCD current is about 200~300mA. No card power-on current is about 50~60mA |
Reference info. (Can click for more detail):
1. Document
2. Github
3. BBS
4. Wiki
5. E-mail: support@sipeed.com

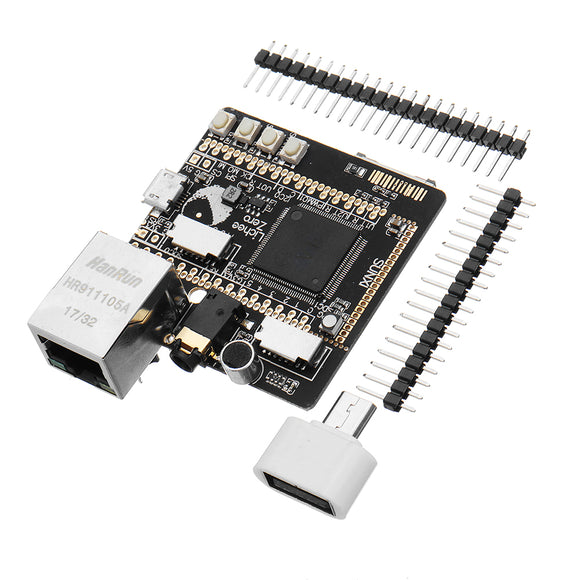

Package Included:
1x Lichee pi board
1x Plug
2x Pins
