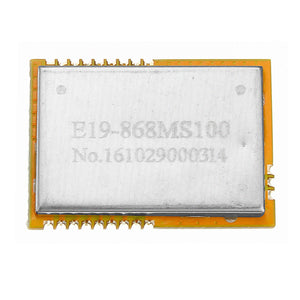

LoRa 868 MHz SX1276 SX1278 Transceiver RF Wireless Module 100mW
Tax included.
| RF Parameter | Value | Remark |
| Working frequency | 862~893 MHz | Default: 868MHz (32MHz oscillator) |
| Transmitting power | 20 dBm | Max. Power (100mW) |
| Receiving sensitivity | -147 dBm | Air data rate: 0.3kbps |
| Air data rate | 0.018k~37.5kbps | Default: 0.3kbps |
| Test distance | 5000m | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m |
| air data rate: 0.3kbps | ||
| Hardware Parameter | Value | Remark |
| Size | 17.6 * 25.2 mm | |
| Antenna type | Stamp hole | |
| Communication interface | SPI | |
| Package | SMD |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply | 1.8 | 3.3 | 3.6 | V | |
| Communication level | 1.8 | 3.3 | 3.6 | V | |
| Transmitting current | 100 | 110 | 120 | mA | 20dBm (100mW) |
| Receiving current | 13 | 14 | 15 | mA | |
| Sleep current | 0.5 | 1 | 2.5 |
