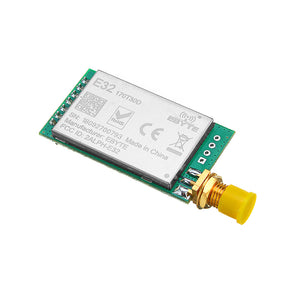

LoRa SX1276 Wireless Transmitter Receiver 868MHz Module E32-868T20D 20dBm UART IoT
Tax included.
| Brand | Ebyte | IC | SX1276 |
| Model | E32-868T20D | Interface | UART |
| Power | 20dBm | Distance | 3000m |
| RF connector | SMA-K | Frequency | 868MHz (862-893MHz) |
| E32-868T20D is a 100 mW wireless transceiver module with LoRa spread-spectrum technology, operates at 862~893MHz (Default: 868MHz), based on originally imported RFIC SX1276 from SEMTECH, transparent transmission is available, TTL level. | |||
| General parameters | |||
| Antenna type | SMA-K | 50Ω characteristic impedance | |
| Operating temperature | -40 ~ +85??/span> | - | |
| Operating humidity | 10% ~ 90% | Relative humidity,No condensation | |
| Storage temperature | -40 ~ +125??/span> | - | |
| Size | 21*36mm | - | |
| Weight | 6.7g | Average weight | |
| Connector | 1*7*2.54mm | Plug-in | |
| Operation Range | About 3000m | Test condition: clear and open area& 20dBm, antenna, gain:5dBi, height: 2m, air data rate: 2.4kbps |
|
| Communication interface | UART | 8N1, 8E1, 8O1,Eight kinds of UART baud rate, from 1200 to 115200 bps |
|
| Driving mode | UART | Can be configured to push-pull/high pull, open-drain | |
| Transmitting length | 512 bytes buffer | 58 bytes per package | |
| Receiving length | 512 bytes buffer | 58 bytes per package | |
| Electrical parameters | |||
| Frequency Band | 862 - 893MHz | Default: 868MHz, channel:32 | |
| Supply voltage | 2.1 - 5.5V DC | ||
