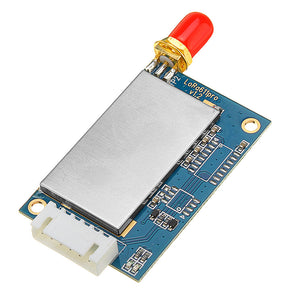

LORA611AES LORA 433MHz Wireless Data Transceiver Module 100mW With TTL RS232 RS485 Interface
Tax included.
Specifications:
Lora611AES is a wireless transceiver data transmission module, based on SX1276/1278 chips from Semtech. This module adopts LORA technology to achieve high effective sensitivity and superior anti-interference. The communication distance and receiver sensitivity are far exceeds the FSK, GFSK modulation. For better security, the module uses AES128 encryption. Lora611AES has 100mW output power and TTL/RS232/RS485 interface available. It is widely applied in meter reading, remote industrial control, etc.
Features:
- Transmission distance in open area up to 5000 meters @ 91bps
- 433/470/868/915 MHz(Customizable)
- 40 channels
- LoRa modulation
- Interface: TTL / RS232 / RS485
- Sensitivity: -139 dBm
- Max output power: 100mW ( 20dBm)
- Working voltage: 3.3 ~ 6.5 V
- Working temperature: -40 ~ 85 °C
Note: High quality 3.3V LDO is integrated, and Pin CS / SET is 3.3V interface. TXD/RXD is also 3.3V for LoRa611-TTL
Parameters |
Min. |
Typ. |
Max. |
Unit |
Condition |
Working condition | |||||
| Voltage range | 3.3 | 5 | 6.5 | V | |
| Operating Temperature | -40 | 25 | 85 | ° | |
Current consumption | |||||
| Rx current | <20 | mA | TTL level | ||
| Tx current | |||||
