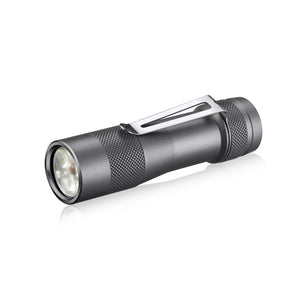

LUMINTOP FW3A XPL HI 2800LM ANDRIL UI EDC Flashlight EDC LED Flashlight Mini LED Keychain Light Mini Torch
Tax included.
Add two options: Nichia 219C 4000K / SST20 4000K (high CRI)
Introduction:
Introduction:
The FW3A was designed by Fritz15 and the flashlight forums TLF & BLF.
Brought to life by Lumintop.
A small 18650 triple LED lamp with tail switch and agreat, a compact, ergonomic, feature-packed EDC-style light.
Specification:
User Manual:
Specification:
Emitter: | Three LEDs on a copper DTP MCPCB e.g. XP-L HI 3D(NW 5000K) XP-L HI 1A(CW 6500K) |
Optic: | Standard TIR optical lens |
Flux: | ~2800 lm (XP-L Hi) |
Intensity: | ~12 500 cd ANSI throw ~223 m (XP-L Hi) |
Firmware: | The FW3A uses free software called Andúril,distributed under the terms of the GPL v3. Code is available from http://tiny.cc/TKAnduril |
User interfaces: |
[1] By default the FW3A is set to use SMOOTH RAMPING. Instant access to TURBO mode is also provided. [2] A more conventional STEPPED RAMPING UI is available if you like discrete modes level. You can choose how many steps you want [3] MOMENTARY mode is useful for signaling purposes or rapidly/briefly lighting up targets. To exit this mode, physically disconnect power [4] MUGGLE mode uses a reduced output. [5] It has an electronic LOCKOUT for safety, but acts also as momentary low light.Other functions: Battery check, sunset, beacon tactical strobe, party strobe, bike flasher, candlelight, lightning storm |
Battery: | One flat-top or button-top 18650 cell. Anunprotected cell is recommended. Max. length 66 mm. Cell is not included. |
Driver: | FET+7+1 driver. Low parasitic drain while OFF |
Body: | Aluminum with hard-coat anodizing |
Switch: | Electronic tail switch |
Ingress rating: | Equivalent to IPX7 |
Weight: | Approximately 53 g without cells |
Size: | 25.5 mm Ø head x 92.5 mm length |
User Manual:
FW3A English User manual
Package included:
1 x LUMINTOP FW3A EDC Flashlight
1 x Clip
(Note: Color of flashlight clip is random in black and steel color)
Accessory Recommended:
Package included:
1 x LUMINTOP FW3A EDC Flashlight
1 x Clip
(Note: Color of flashlight clip is random in black and steel color)
Accessory Recommended:
