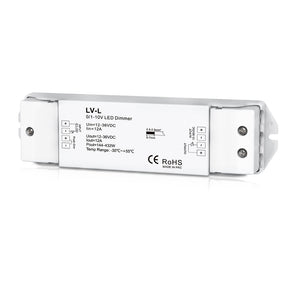

LV-L DC12-36V To 0/1-10V PWM Constant Current LED Dimmer Controller for Single Color Strip Light
Tax included.
Specification:
Model: LV-L
Input voltage: DC12-36V
Output current: 1CH, 12A
Output wattage: 144-432W
Dimension:175*45*27mm(L*W*H)
Feature:
1 channel 0/1-10V input, 1 channel PWM constant voltage or constant current output
0-100% dimming range via logarithmic characteristic can be very comfortable for human eyes.
Smooth dimming without any flickering
Compatible with active or passive 0-10V, 1-10V access dimmer, can solve the fluorescent lamp dimming system compatible with LED lighting
Package included:
1*LV-L LED dimmer controller
Model: LV-L
Input voltage: DC12-36V
Output current: 1CH, 12A
Output wattage: 144-432W
Dimension:175*45*27mm(L*W*H)
Feature:
1 channel 0/1-10V input, 1 channel PWM constant voltage or constant current output
0-100% dimming range via logarithmic characteristic can be very comfortable for human eyes.
Smooth dimming without any flickering
Compatible with active or passive 0-10V, 1-10V access dimmer, can solve the fluorescent lamp dimming system compatible with LED lighting
Package included:
1*LV-L LED dimmer controller
