Machifit 0.3-4mm Mini Electric Drill Chuck JTO Taper with 5mm Shaft Connecting Rod for 775 Motor
Tax included.
Description:
MACHIFIT 0.3-4mm mini drill electric chucks fitting JTO taper with key and 5mm shaft connecting rod.
Specification:
Features:
- High precision screw thread and tapered hole.
- Strong impact resistance.
- The shank with screw can be tight and flex for you.
- Application: Compatible with impact dril and different power electric drill.
- For milling machine, lathe, drilling machine, wood working machine.Also fits 775motor.
Package Included:
MACHIFIT 0.3-4mm mini drill electric chucks fitting JTO taper with key and 5mm shaft connecting rod.
Specification:
| Material | High Carbon Steel |
| Outside diameter | 21mm |
| Taper | 2 degrees 49 minutes 24.7 seconds |
| Clamping range | 0.3mm-4mm (0.01" - 0.16") Drill The maximum clamping: 4mm |
| Connection size | JT0 (inner hole diameter is 5 mm) |
| JT0 taper the biggest end of diameter | 6.35mm |
| JT0 taper The smallest end of diameter | 5.80mm |
Features:
- High precision screw thread and tapered hole.
- Strong impact resistance.
- The shank with screw can be tight and flex for you.
- Application: Compatible with impact dril and different power electric drill.
- For milling machine, lathe, drilling machine, wood working machine.Also fits 775motor.

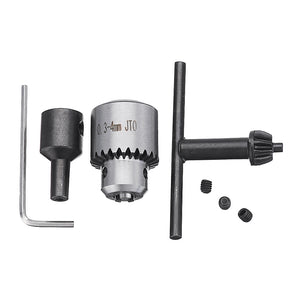

Package Included:
1 x 0.3-4mm Drill Chuck
1 x 5mm Shaft Connecting Rod
1 x Chuck Key
1 x L-style key
2 x Screws
More Details: 1 x Chuck Key
1 x L-style key
2 x Screws
