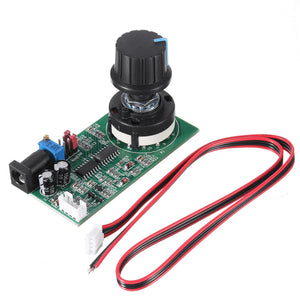

MC-11 1Hz-100KHz Pulse Signal Generator PWM Square Wave Generator Module Adjustable Rotate Button Pulse Width Modulation
Tax included.
Features:
Size:3.5x7cm
Power Supply:DC 5-12V
Pulse Output Signal Amplitude: 5-12 Vpp 50mA (pulse amplitude is less than the input voltage 0.3V)
Output Pulse Polarity:
Positive Pulse Output (from low to high rise + OUT)
Negative Pulse Output (dropped from high to low -OUT)
Frequency Adjustment Range:
1Hzmdash100Hz
100Hzmdash10KHz
1KHzmdash100KHz
Pulse Width Modulation: A total of 11 stalls
0 output low, off state
1-9 output were 10% -90%
10 output high. Normally open
(Such as the selection of a negative output, the function of all the contrary)
Apply For:a square wave signal generator, frequency source,and a variety of needs and frequency modulation use the pulse width control device
Package Included:
1 x MC-11 1Hz-100KHz Pulse Signal Generator
