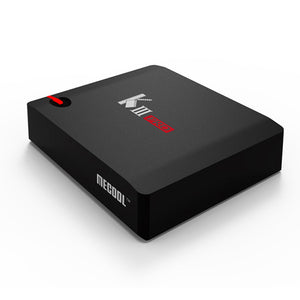

MECOOL KIII Pro Amlogic S912 3GB RAM 16GB ROM DVB-T2 DVB-S2 CCcam Newcam Biss Key TV Box

MECOOL KIII Pro Amlogic S912 Octa Core 3GB DDR3 RAM 16GB ROM DVB-T2 DVB-S2 CCcam Newcam Biss Key Android 6.0 2.4G 5.0G WiFi 1000M Gigabit LAN 4Kx2K 60fps bluetooth 4.0 HDR10 H.265 HEVC VP9 Android TV Box Mini PC

Features:

CPU: Amlogic S912  64 bit Octa core ARM Cortex-A53 CPU up to 2 GHz

GPU: ARM Mali-T820MP3 GPU up to 750MHz (DVFS)

RAM: 3GB DDR3

ROM: 16GB EMMC Flash

OS: Android 6.0  marshmallow

Ethernet: 10/100M/1000M

WiFi: Built in 2.4G/5G  WiFi  Support IEEE 802.11 a/b/g/n/ac

Blutooth: v4.0

Specifications:

Hardware Specifications
CPU	Amlogic S912  64 bit Octa core ARM Cortex-A53 CPU up to 2 GHz
GPU	ARM Mali-T820MP3 GPU up to 750MHz (DVFS)
RAM	3GB DDR3
ROM	16GB EMMC Flash
WiFi	Built in 2.4G/5G  WiFi  Support IEEE 802.11 a/b/g/n/ac
Blutooth	bluetooth 4.0
LAN Ethernet	10/100M/1000M
Main Features
OS	Android 6.0  marshmallow
DVB-S2	DVB-S2 system standard: ETS 302 307
	Symbol Rates: QPSK, 8PSK
	Forward error correction rate 1/4, 1/3, 2/5, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
	Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps  and ±3MHz for the remaining symbol rates
	Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35
	Symbol Rates: 1- 55 Msps
	Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8
	Input Signal level: -84 dBm to  0 dBm (average power)
	ANT. Connector:IEC TYPE F
DVB-T2	DVB-T2 system standard: ETSIEN 302 755
	Support MPLP
	Demodulation: QPSK, 16QAM, 64QAM or 256QAM
	Forward error correction rate 1/2, 2/3, 3/4, 3/5, 5/6
	Guard interval :1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
	Bandwith: 6/7/8MHz
	Input Frange range:54--860MHz Input Impedance:75 Ω
	Input Signal level: -84 dBm to  0 dBm (average power)
	ANT. Connector:IEC TYPE, female
Video decorder	H.265 4K @60fps 10btis, VP9  Profile 2, H.264 4K @30fps, AVS+ 1080P @60fps
Video encorder	H.264 1080P @60fps
HDR	HDR 10, HLG HDR
Decoder format	HD MPEG1/2/4, H.265/HEVC, HD AVC/VC-1, RM/RMVB, Xvid/DivX3/4/5/6 , RealVideo8/9/10
Media format	Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg
Music format	MP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE
Photo format	HD JPEG/BMP/GIF/PNG/TIFF
Network Function	Miracast, , Airplay, Skype chatting, Picasa, Youtube, Flicker, Facebook, Online movies, etc.
Language	Chinese, English , Germany , Japanese, Korea  etc.  24 languages
OTA	Support OTA update
Port Specifications
I/O	1 x HD output  2.0 4K*2K @ 60Hz
	2 x High speed USB 2.0, support U DISK and USB HDD
	1 x TF CARD Support 1~32GB
	1 x 3.5 Phone out CVBS&L/R output
	1 x SPDIF output
	1 x RJ45 LAN Ethernet 10M/100M/1000M
Power Supply	DC 12V/1A
LED Indicator	Power ON :blue; Standby :Red

How to install TV Center:



Package Included:

1 x Mecool KIII Pro S912 3G/16G DVB-T2/S2 CCcam Newcam Biss Key TV Box
1 x HDMI Cable
1 x Remote Control
1 x Power Adapter
1 x User Manual
