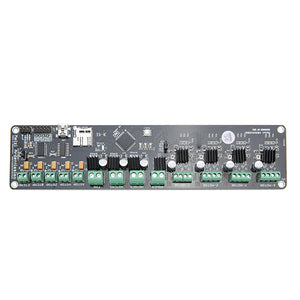

Melzi 2.0 Control Board 1284P Prusa I3 Controller Board For 3D Printer
Tax included.
Reprap Melzi 2.0 Control Board 1284P Prusa I3 Controller Board For 3D Printer
Description:
This is a Reprap Melzi Ardentissimo full featured board using the ATMEGA1284P 16MHZ chip. This is a Sanguinololu firmware compatible board, need not the extra fan, hashing micro SD on board as well. A full firmware is on board as well negating the need for external stepper motor drivers.
Feature:
This is a complete set of 3D printers electronic control board
The main chip is ATmega1284P-AU (TWICE the memory of the inferior 644P!)
4x Stepper Motor Driver integrated chips are Allegro A4988 (Pololu)
Integrated USB chip FT232RL socket
Can control heatbed MK1, MK2a, MK2b, MK3
Integrated 3 MOSFET driver hot end, heatbed and fan
Integrated G code file micro SD card socket
Specification:
Working voltage: 12V
Dimension: 210 x 50 x 17 mm
Weight: 70g
Package included:
1 x Melzi 2.0 Main Control Board
