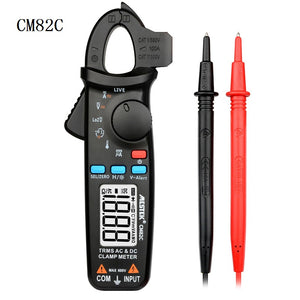

MESTEK CM82C RMS Digital Clamp Meter DC AC Current Voltage Ampere NCV Ohm Tester Ammeter Multimeter Electrician Tool
Tax included.
Features:
??MESTEK CM82C series products have True-RMS characteristics (1mA resolution).Can effectively meet the needs of professionals.
??Maximum display: 6000Counts. Compared with similar products,The CM82C still has 1mA accuracy for a larger measurement range (0~6A).
??The CM82C clamp meter has a ?œZero Clear Function??(ZERO). Used before the DC current test, Can effectively reduce the test error.
??Dual impedance test voltage (Conventional voltage test and Low Impedance voltage test), It can meet the voltage test requirements of professionals.
Specification:
|
Measurement Range |
CM82A |
CM82B |
CM82C |
Accuracy |
|
DC Current |
|
|
6A |
±(3%+5counts) |
|
|
|
60A/100A |
±(2.5%+5counts) |
|
|
DC Current(uA) |
|
0-200uA |
±(0.8%+5counts) |
|
|
AC Current |
2A/20A/200A |
6A/60A/200A |
6A/60A/100A |
±(2.5%+5counts) |
|
DC voltage |
2V/20V//200V/600V |
6V/60V/600V |
±(1.0%+3counts) |
|
|
AC voltage |
2V/20V/200V/600V |
6V/60V/600V |
±(1.0%+3counts) |
|
|
Resistance |
200Ω/2KΩ/20KΩ /200KΩ/2MΩ |
600Ω/6KΩ/60KΩ/600KΩ/6MΩ |
±(1.0%+3counts) |
|
|
20MΩ |
60MΩ |
±(1.2%+20counts) |
||
|
Capacitance |
|
600uf/6000uf |
±(4%+3counts) |
|
|
Frequency |
|
60hz/1000hz |
±(l*0%+5counts) |
|
|
Frequency (by jaws) |
|
60hz/1000hz |
(1.0%+5counts) |
|
|
Temperature |
-20??500??1??2°F |
±(2% + 2counts) |
||
|
Measure Diode |
0.001V Displays the |
|
||
