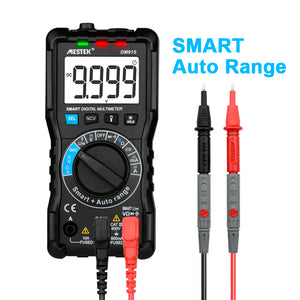

MESTEK DM91S Intelligent Multimeter 9999 Counts Smart Auto Range Tester Multi-function Multitester

MESTEK DM91S Intelligent Multimeter 9999 Counts Smart Auto Range Tester Multi-function Multitester

  • Save R 847.26
Tax included.
SKU:
Specification:

Model

DM91S

Display

LCD display with backlight,9999 counts

Range control

auto range & manual range

Operating Environment

IEC61010-1,CAT III 600V

DC Voltage Range

999.9mV/9.999V/99.99V/600V

DC Voltage Resolution

 0.1mV/0.001V/0.01V/0.1V

AC Voltage Range

0.999V/9.999V/99.99V/600V

AC Voltage Resolution

0.001V/0.01V/0.1V

DC Current Range

999.9uA/9999uA/99.99mA/600.0mA/10A

DC Current Resolution

0.1uA/1uA/0.01mA/0.1mA/0.01A

AC Current Range

999.9uA/9999uA/99.99mA/600.0mA/10A

AC Current Resolution

0.1uA/1uA/0.01mA/0.1mA/0.01A

Resistance Range

999.9ohm/9.999kohm/99.99kohm/999.9kohm/9.999Mohm/99.99Mohm

Resistance Resolution

0.1ohm/0.001kohm/0.01kohm/0.1kohm/0.001Mkohm/0.01Mohm

Capacitance Range

9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF

Capacitance Resolution

0.001nF/0.01nF/0.1nF/0.001uF/0.01uF/0.1uF/0.001mF/0.01mF

Function:

DC/AC Voltage Current,Resistance,Capacitance,Battery Voltage Measurement,Data Hold,Backlight,Auto Power off,NCV Test,Continuity Buzzer Test with LCD,Over Load Protection,Short-circuit Protection,Live Fire Wire Identification,VFC Test.AC Voltage Current Frequency Measurement,Diode Test

Good quality CPU

The multimeter sets the kernel on the integrated circuits and A/D converter,and is provided with overload protection circuit.
Automatic diode/switch buzzer no need to switch
10000 counts true RMS

Blown fuse alarm

Replace after fusing, you can apply the function again

Battery measuring,Load Resistance

The actual load measurement voltage value of the 1.5V & 9V gear analog battery output is more accurate.

V.F.C frequency measurement

The voltage gear is pressed for two seconds to enter the measurement.
Intelligent prevent burning,extending life.(battery is not included)
Magnetic lanyard,easy and convenient(not included)
Table pen storage, special design

Package included:

1 x DM91S Multimeter
1 x 10A original pen
1 x English manual
1 x Packing box

Details Pictures:
