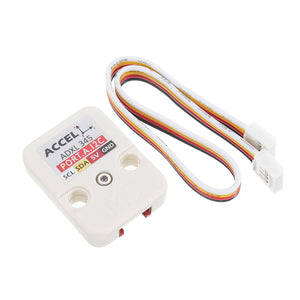

Mini ACCEL Motion Sensor Module 3-axis Accelerometer ADXL 345 I2C Interface

Description:

ACCEL is a motion sensor Unit. Integrated with ADXL 345, ACC is able to obtain 3- axis of Acceleration. ADXL 345 is a small, thin, ultralow power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16 g. Digital output data is formatted as 16-bit twos complement and is accessible through either an SPI (3- or 4-wire) or I2C digital interface. In this Unit, we used I2C series interface.

What is an accelerometer?
An accelerometer is an electromechanical device that will measure acceleration forces. These forces may be static, like the constant force of gravity pulling at your feet, or they could be dynamic - caused by moving or vibrating the accelerometer.
What are accelerometers useful for?
By measuring the amount of static acceleration due to gravity, you can find out the angle the device is tilted at with respect to the earth. By sensing the amount of dynamic acceleration, you can analyze the way the device is moving. At first, measuring tilt and acceleration doesn't seem all that exciting. However, engineers have come up with many ways to make really useful products with them.

Product Features:

• Supply voltage range: 2.0 V to 3.6 V
• Ultralow power: as low as 23 µA in measurement mode and 0.1 µA in standby mode at VS = 2.5 V (typical)
• Single tap/double tap detection
• Activity/inactivity monitoring
• Free-fall detection
• I/O voltage range: 1.7 V to VS
• I2C digital interfaces
• Wide temperature range (−40°C to +85°C)
• Product Size: 32.2mm x 24.2mm x 8.1mm
• Product weight: 3.9g

Package Included:

• 1x ACC unit
• 1x GROVE Cable

Application:

• Building and structural monitoring
• Navigation
• Orientation sensing

Dcumentation:

• Datasheet - ADXL345

Schematic:
