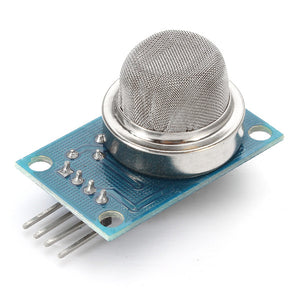

MQ-2 Smoke Gas LPG Butane Gas Sensor Module Tester For Arduino
Tax included.
Features:
1. Using high-quality dual-panel design, with power indicator and TTL signal output instructions
2. there are four screw holes for easy positioning
3. Analog output voltage with the higher concentration of higher voltage
4. TTL output valid signal is low. (Low-level signal when the output light can be directly connected to the microcontroller or relay module)
5. The switching signal having a DO (TTL) output and analog output AO
Special note:
After the sensor is powered, needs wait about 20S, measured data was stable, heat sensor is a normal phenomenon, because the internal heating wire.
Specifications:
Size: 32 x 22 x 27mm
Chip: LM393, ZYMQ-2 gas sensors
Working voltage: DC 5V
AO output :0.1-0 .3 V (relative to pollution), the maximum concentration of a voltage of about 4V
DO output: TTL digital 0 and 1 (0.1 and 5V)
Input voltage: DC5V Power consumption (current): 150mA
Package included:
1 x MQ-2 gas sensor module
If you want another model, you can click on the ID
1. Using high-quality dual-panel design, with power indicator and TTL signal output instructions
2. there are four screw holes for easy positioning
3. Analog output voltage with the higher concentration of higher voltage
4. TTL output valid signal is low. (Low-level signal when the output light can be directly connected to the microcontroller or relay module)
5. The switching signal having a DO (TTL) output and analog output AO
Special note:
After the sensor is powered, needs wait about 20S, measured data was stable, heat sensor is a normal phenomenon, because the internal heating wire.
Specifications:
Size: 32 x 22 x 27mm
Chip: LM393, ZYMQ-2 gas sensors
Working voltage: DC 5V
AO output :0.1-0 .3 V (relative to pollution), the maximum concentration of a voltage of about 4V
DO output: TTL digital 0 and 1 (0.1 and 5V)
Input voltage: DC5V Power consumption (current): 150mA
Package included:
1 x MQ-2 gas sensor module
If you want another model, you can click on the ID
| Model | Gas Detection | Item ID |
| MQ2 | flammable gas/smoke | 1144079 |
| MQ3 | alcohol steam | 1414301 |
| MQ4 | Natural gas/Methane | 1377624 |
| MQ5 | Liquefied gas/Methane/Coal gas /LPG | 1378464 |
| MQ6 | Liquefied gas/Isobutane/Propane/LPG | 1378477 |
| MQ7 | Carbon monoxide | 915474 |
| MQ8 | hydrogen | 1378425 |
| MQ9 | Carbon monoxide flammable gas | 1378463 |
| MQ131 | Ozone Concentration | 1183257 |
| MQ135 | Ammonia/sulfide/benzene vapor | 1378465 |
| A set of MQ | 1005800 |
,
,
,
