MT9V034 Global Shutter Camera Module OpenMV4 H7 / Plus High Frame Rate Grayscale
Tax included.
Description:

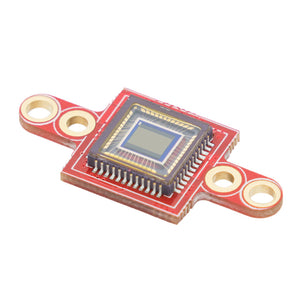

The global shutter camera module enables OpenMV Cam to capture high-quality grayscale images without motion blur.
This module has MT9V034 global shutter sensor, which can reach 80FPS in QVGA mode, 200FPS in QQVGA mode, and 400FPS in QQVGA mode according to demand.
If you want to use OpenMV Cam in professional products, the global shutter camera module is the most suitable sensor.
Specifications:
Horizontal resolution: 752 pixels (4. 51mm) 6um pixel pitch
Vertical resolution: 480 pixels (2. 88mm) 6um pixel pitch
Lens Information: Focal Length: 2.8mm
Aperture: F2. 0 Size: 1/3 "
Horizontal viewing angle: 115 °
Vertical viewing angle: 90 °
Mounting hole: M12 * 0. 5
Infrared filter (removable): 650nm (cut off infrared light)
Weight: 10g
Length: 35mm Width: 25mm Locality: 28mm
Storage temperature range: -50 ° C to 150 ° C
Operating temperature range: -30 ° C to 70 ° C
OpenMV Powered:
You can choose one of the following two methods, and you can also supply power at the same time:
1. Connect directly to USB port for power supply
2. Connect to VIN-GND, 3.7-5V, 5V is recommended,
The rated current of the power supply needs to be greater than 250MA.
Note! Under no circumstances should the OpenMV be powered with 3.3V pins
Package includes:
1 x OpenMV Cam
