MTOLASER BK60A-M6 Tilting 2-axis Platforms Optics Two-Dimensional Position Adjustment Y-Axis Space Fine-tuning Positioning Accessories
Tax included.
Description:

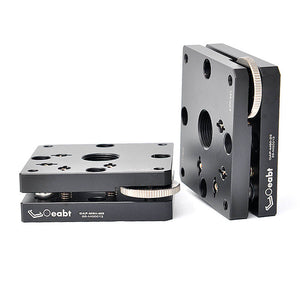

This BK60A-M6 tilting 2-axis platform is widely used in camera, sensor and other positioning, optical component two-dimensional position adjustment, Y-axis spatial fine-tuning positioning, and other purposes.
Specification:
Main Material: Aluminum Alloy
Brand: MTOLASER
Model: BK60A-M6
Table Size: 60mm x 60mm
Mobile Mechanism: Manual Screw Type
Movement Range: ±2°
Load Resistance: 4kgf
Features:
1. It can widely used in camera, sensor and other positioning, optical component two-dimensional position adjustment, Y-axis spatial fine-tuning positioning, and other purposes.
2. There are two knobs which can adjust tilt adjustment of pitch angle. It runs smoothly and stably with high accuracy.
3. Made of aluminum alloy, high stiffness, excellent stability and large loading.
Package Included:
1 x BK60A-M6 Tilting 2-axis Platform
More Details:
This BK60A-M6 tilting 2-axis platform is widely used in camera, sensor and other positioning, optical component two-dimensional position adjustment, Y-axis spatial fine-tuning positioning, and other purposes.
Specification:
Main Material: Aluminum Alloy
Brand: MTOLASER
Model: BK60A-M6
Table Size: 60mm x 60mm
Mobile Mechanism: Manual Screw Type
Movement Range: ±2°
Load Resistance: 4kgf
Features:
1. It can widely used in camera, sensor and other positioning, optical component two-dimensional position adjustment, Y-axis spatial fine-tuning positioning, and other purposes.
2. There are two knobs which can adjust tilt adjustment of pitch angle. It runs smoothly and stably with high accuracy.
3. Made of aluminum alloy, high stiffness, excellent stability and large loading.
Package Included:
1 x BK60A-M6 Tilting 2-axis Platform
